Locations
>>
Connector Locations
Connector Locations

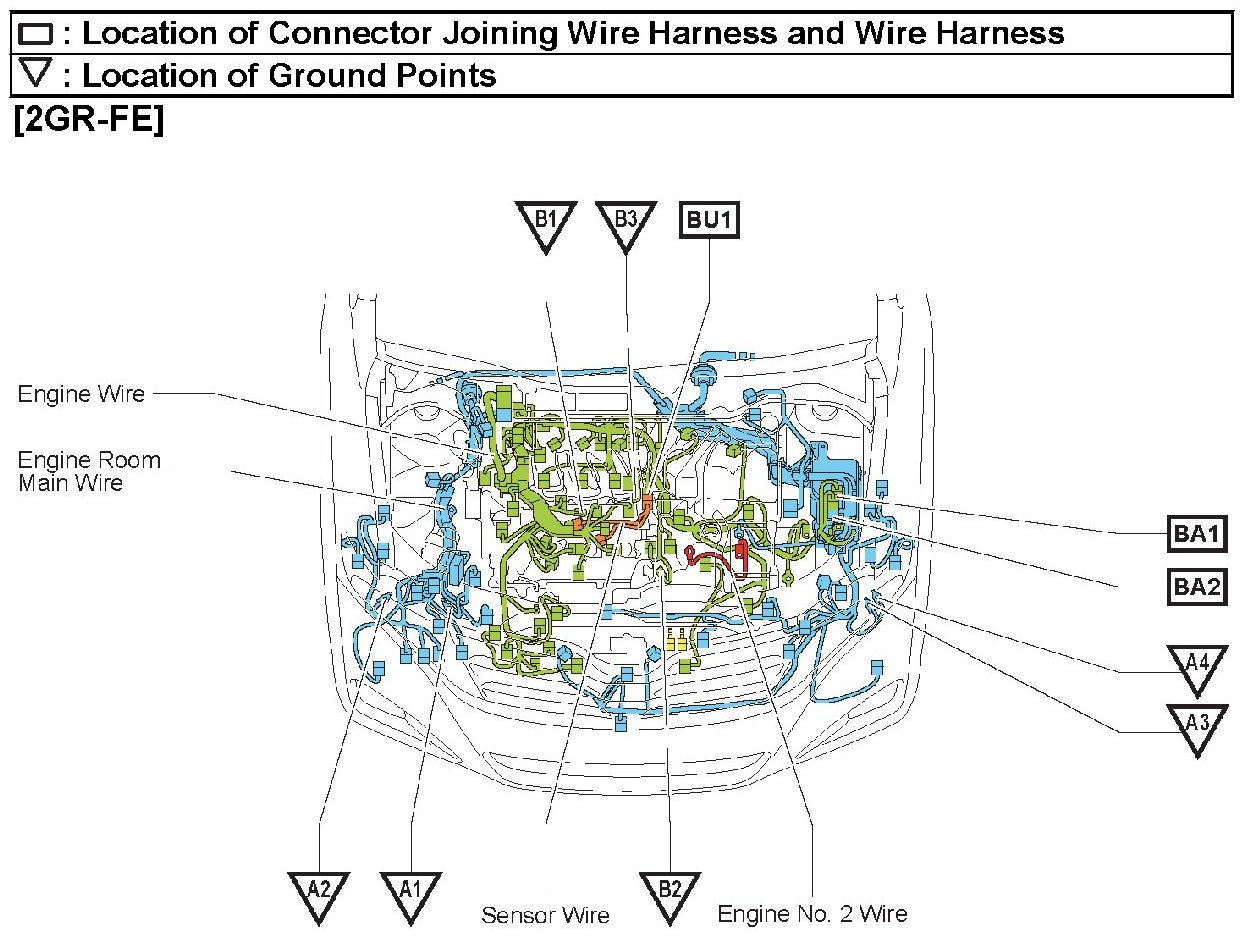

A1-B3 / BA1-BU1:

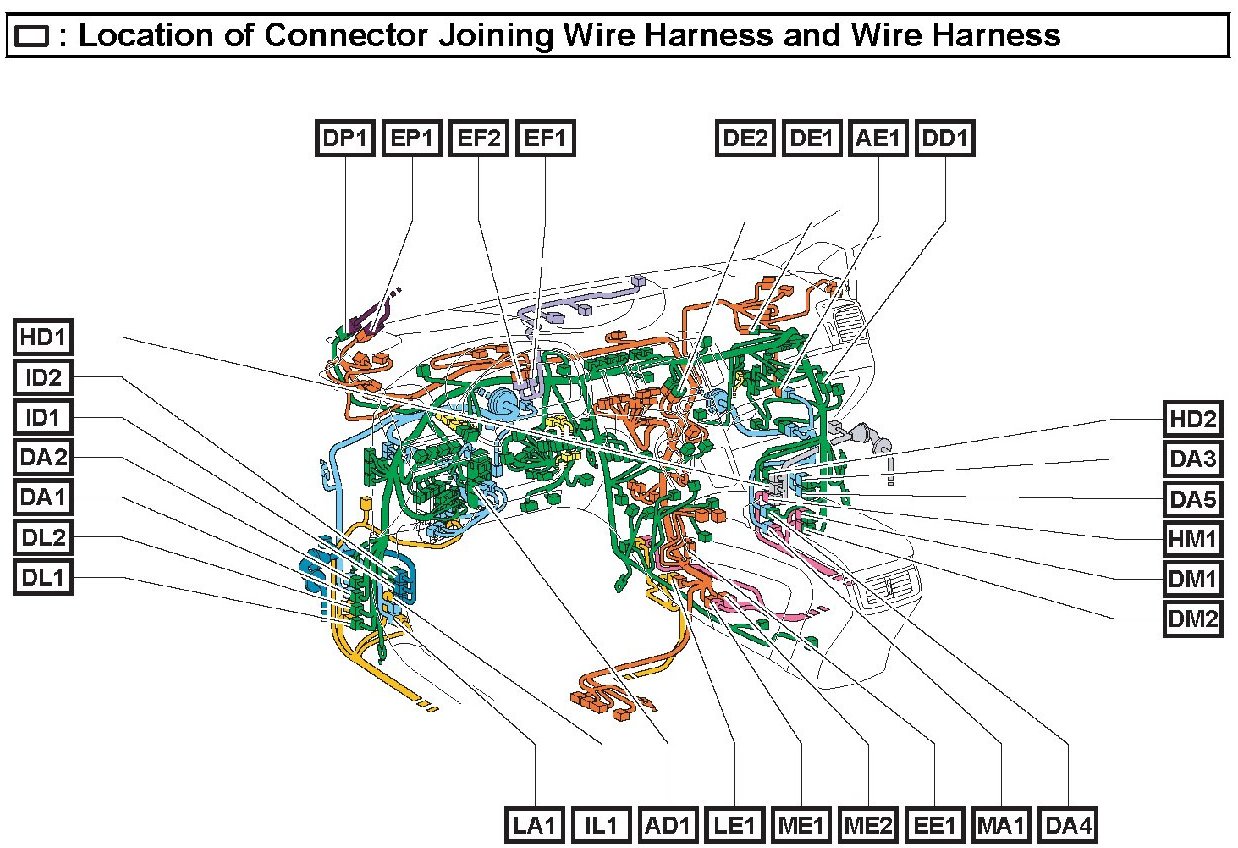

AD1-ME2:

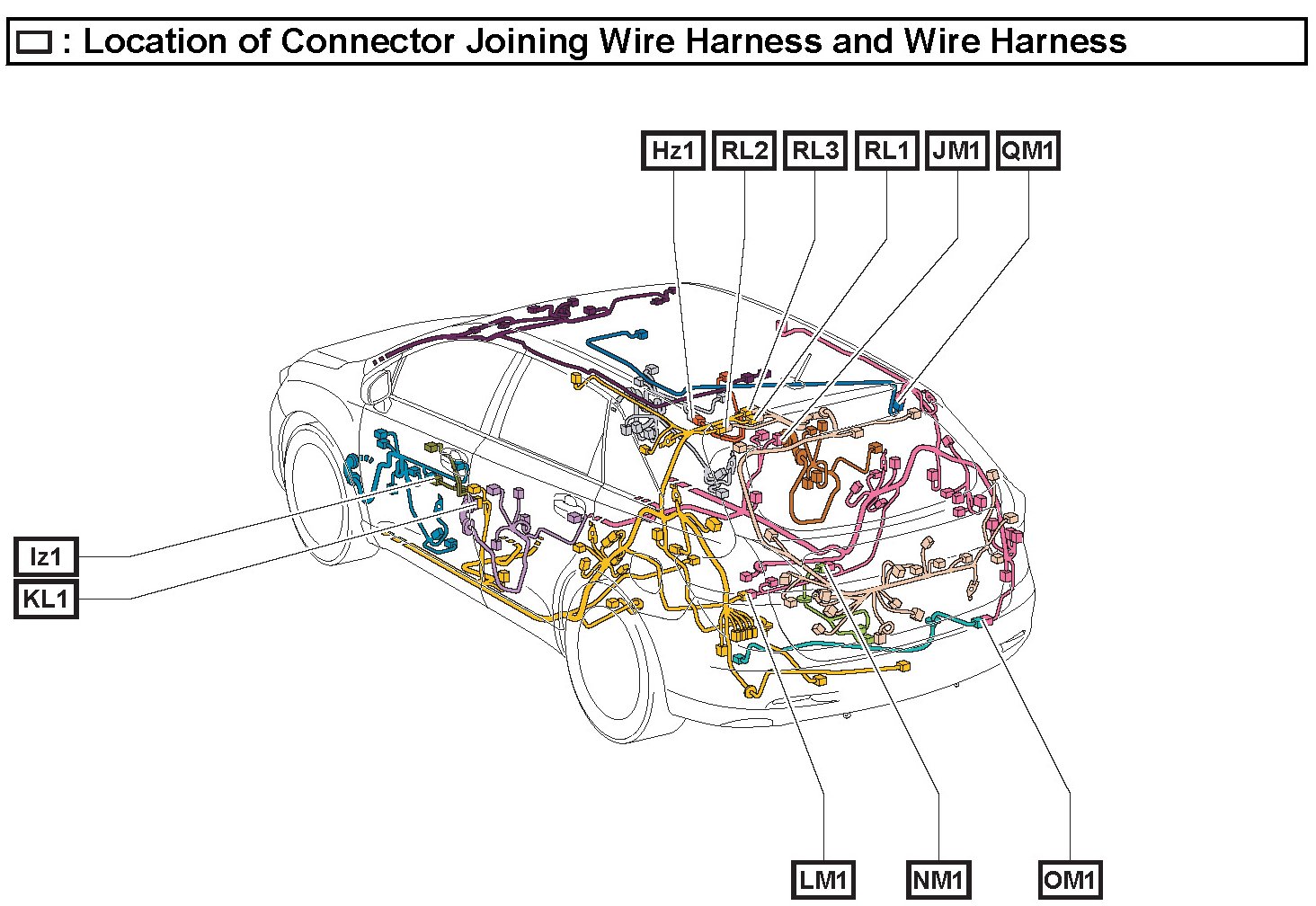

Hz1-RL3:

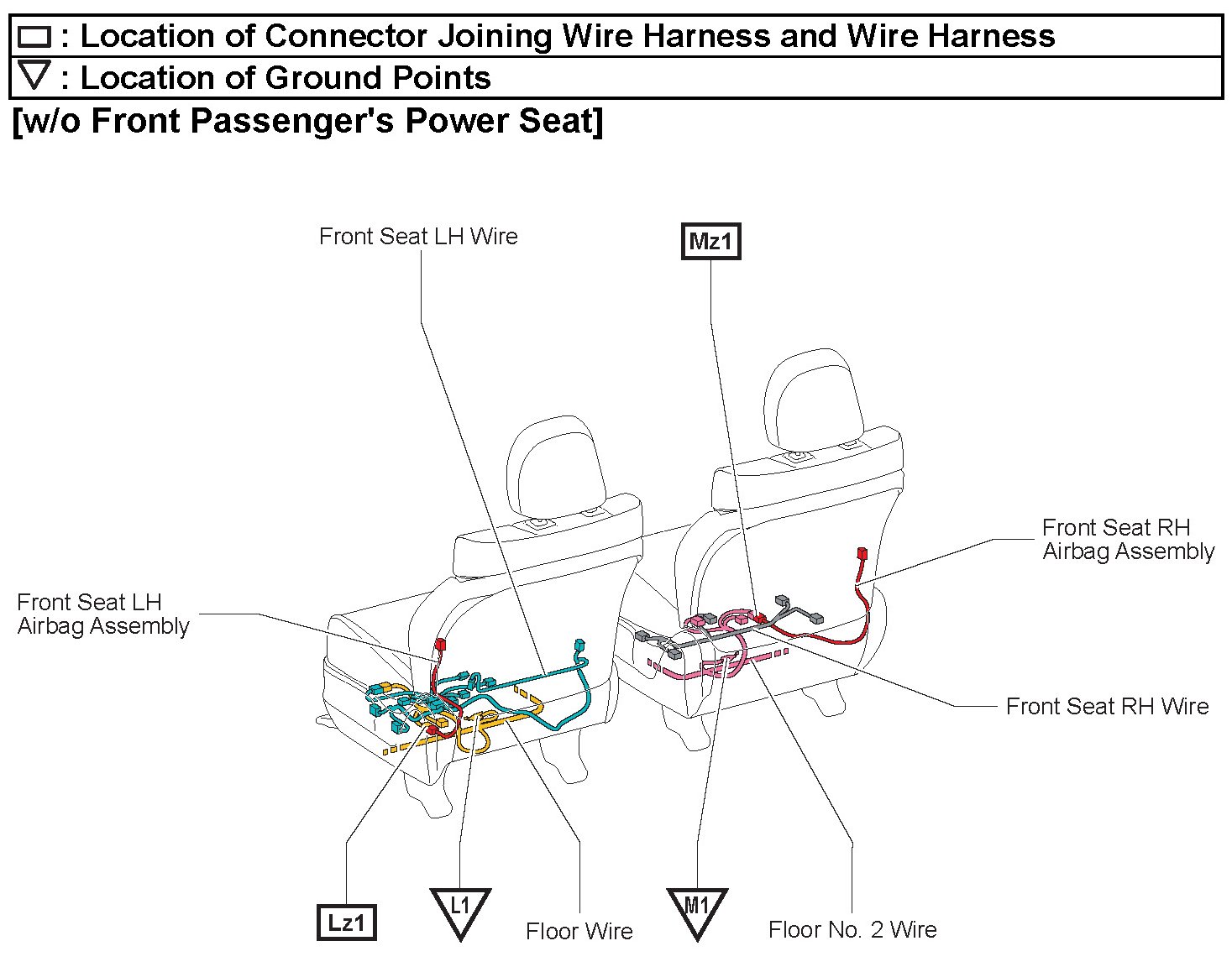

L1-Mz1:

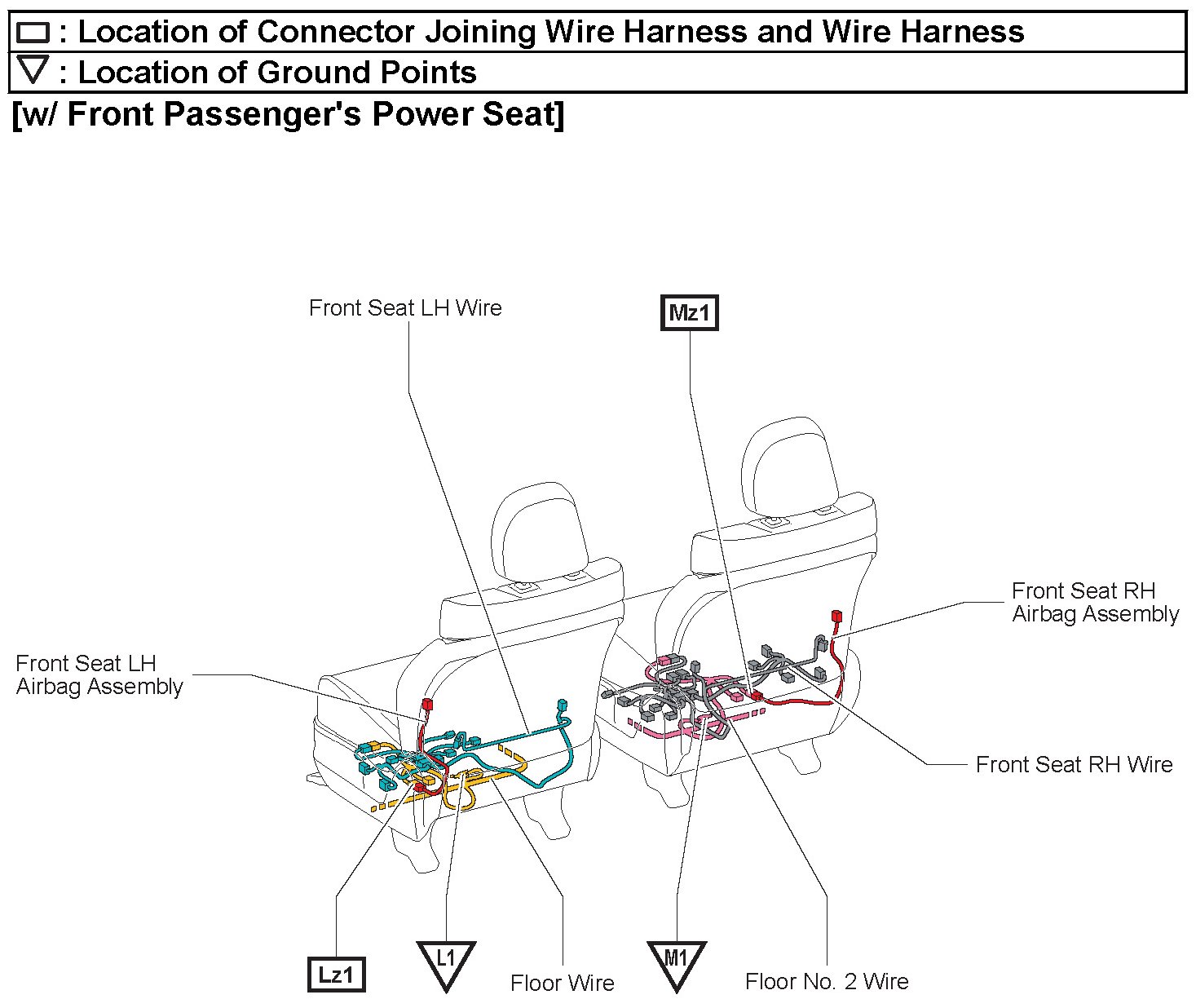

L1-Mz1:
