Reassembly

EXTERIOR PANELS / TRIM: FRONT BUMPER: REASSEMBLY

1. INSTALL FRONT BUMPER SIDE RETAINER LH

(a) Engage the claw.

(b) Install the front bumper side retainer LH with the bolt.

Torque : 4.1 Nm (42 kgf-cm, 36 in-lbf)

2. INSTALL FRONT BUMPER SIDE RETAINER RH

HINT
Use the same procedure as for the LH side.

3. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

(a) Install the front bumper reinforcement sub-assembly with the 6 bolts.

Torque : 61 Nm (622 kgf-cm, 45 ft-lbf)

(b) Engage the 5 clamps.

4. INSTALL FRONT BUMPER ENERGY ABSORBER

(a) Engage the 2 guides to install the front bumper energy absorber.

5. INSTALL NO. 1 LOWER RADIATOR GRILLE

(a) for Standard:

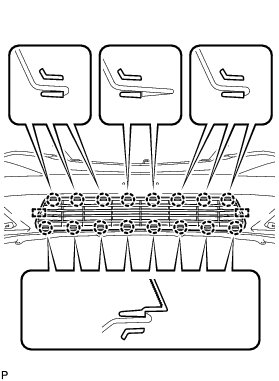

(1) Engage the 2 guides and 16 claws to install the No. 1 lower radiator grille.

(b) for Sport Package:

(1) Engage the 2 guides and 6 claws to install the No. 1 lower radiator grille.

6. INSTALL FRONT BUMPER HOLE COVER LH (for Standard)

(a) w/ Fog Light:

(1) Engage the 2 claws and 2 guides to install the fog light mounting bracket LH.

(b) Engage the 5 claws to install the front bumper hole cover LH.

7. INSTALL FRONT BUMPER HOLE COVER RH (for Standard)

HINT
Use the same procedure as for the LH side.

8. INSTALL FRONT BUMPER HOLE COVER LH (for Sport Package)

(a) Engage the 3 claws and guide to install the fog light mounting bracket LH.

(b) Engage the 2 claws to install the front bumper side moulding LH.

(e) Install the 2 screws.

9. INSTALL FRONT BUMPER HOLE COVER RH (for Sport Package)

HINT
Use the same procedure as for the LH side.

10. INSTALL FRONT FENDER LINER RETAINER

(a) Engage the claw to install the front fender liner retainer.

HINT
Use the same procedure for the RH side and LH side.

11. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET (for Standard)

(a) w/o Side Turn Signal Light:

(1) Engage the 2 hooks.

Text in Illustration

(2) Install the front bumper extension mounting bracket with the 2 screws.

(b) w/ Side Turn Signal Light:

(1) Engage the 2 hooks.

Text in Illustration

(2) Install the front bumper extension mounting bracket with the 2 screws.

12. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET (for Sport Package)

(a) Engage the 2 hooks.

Text in Illustration

(b) Install the front bumper extension mounting bracket with the 2 screws.

13. INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light) Installation

14. INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)

HINT
Use the same procedure as for the LH side.

15. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System) Installation

16. INSTALL NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System) Installation
