Disassembly

SEAT: REAR SEAT ASSEMBLY: DISASSEMBLY

1. REMOVE REAR SEAT CUSHION FRAME SUB-ASSEMBLY

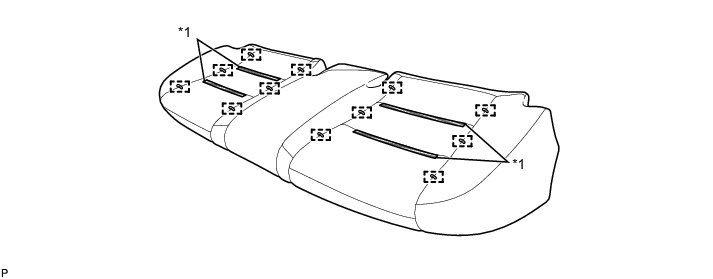

(a) Disengage the 13 hooks and remove the rear seat cushion frame sub-assembly.





2. REMOVE BENCH TYPE REAR SEAT CUSHION COVER

(a) Remove the 12 hog rings and disengage the 4 fasteners, and remove the bench type rear seat cushion cover from the bench type rear seat cushion pad.





Text in Illustration





3. REMOVE REAR SEAT SHOULDER BELT GUIDE LH

(a) Remove the 2 screws.





(b) Disengage the guide and remove the rear seat shoulder belt guide LH.

4. REMOVE REAR SEAT AIRBAG ASSEMBLY LH Removal

5. REMOVE REAR SIDE SEATBACK COVER SUB-ASSEMBLY LH

(a) Remove the rear side seatback cover sub-assembly LH from the rear side seatback pad LH.





6. REMOVE REAR SEAT SHOULDER BELT GUIDE RH

HINT
Use the same procedure as for the LH side.

7. REMOVE REAR SEAT AIRBAG ASSEMBLY RH

HINT
Use the same procedure as for the LH side Removal.

8. REMOVE REAR SIDE SEATBACK COVER SUB-ASSEMBLY RH

HINT
Use the same procedure as for the LH side.

9. REMOVE REAR SEAT CENTER SHOULDER BELT GUIDE

(a) Remove the 2 screws.





(b) Disengage the guide and remove the rear seat center shoulder belt guide.

10. REMOVE REAR SEATBACK CARPET LH

(a) Using a clip remover, remove the 3 clips.





(b) Disengage the 2 fasteners and remove the rear seatback carpet LH.

Text in Illustration





11. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH

(a) Disengage the 20 claws and remove the rear seatback frame sub-assembly LH.





12. REMOVE SEPARATE TYPE REAR SEATBACK COVER LH

(a) Remove the 8 hog rings and the separate type rear seatback cover LH from the separate type rear seatback pad LH.





13. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY

(a) Remove the bolt and washer.





(b) Disengage the guide and remove the rear seat center armrest assembly.

14. REMOVE REAR SEATBACK CARPET RH

(a) Using a clip remover, remove the 5 clips.





(b) Disengage the 3 fasteners and remove the rear seatback carpet RH.

Text in Illustration





15. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY RH

(a) Disengage the 20 claws and remove the rear seatback frame sub-assembly RH.





16. REMOVE SEPARATE TYPE REAR SEATBACK COVER RH

(a) Remove the 10 hog rings and separate type rear seatback cover RH from the separate type rear seatback pad RH.
