Relay

HYBRID / BATTERY CONTROL: RELAY: ON-VEHICLE INSPECTION

1. INSPECT IGNITION CONTROL RELAY (IGCT)

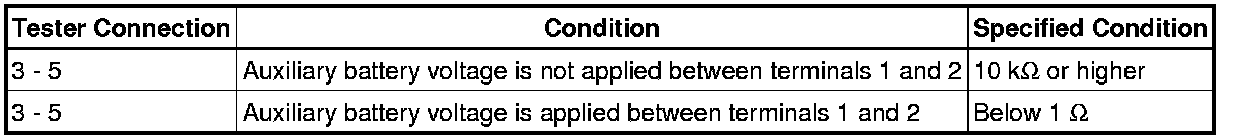

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





If the result is not as specified, replace the relay.

2. INSPECT HYBRID WATER PUMP RELAY (INV W/PMP)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





If the result is not as specified, replace the relay.
