Mechanical Specifications

SPECIFICATIONS: HEATING / AIR CONDITIONING: TORQUE SPECIFICATIONS

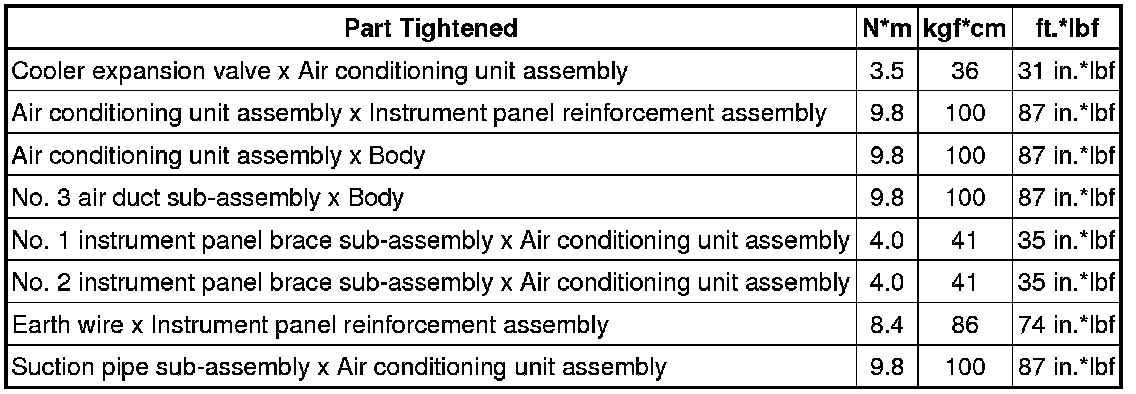

AIR CONDITIONING UNIT

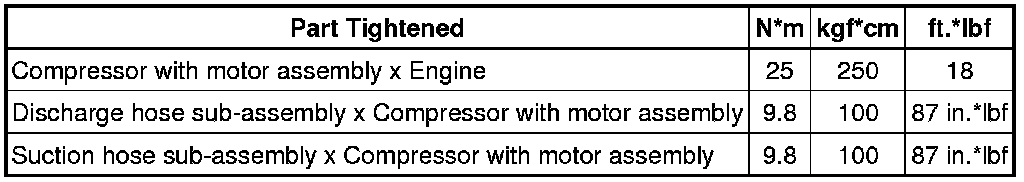

COMPRESSOR

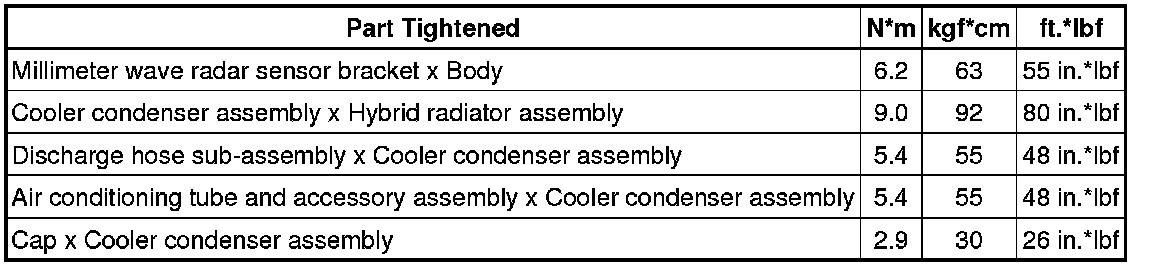

CONDENSER

AIR CONDITIONING PRESSURE SENSOR
