HV Relay Assembly

HYBRID / BATTERY CONTROL: HV RELAY ASSEMBLY: INSPECTION

1. HYBRID BATTERY JUNCTION BLOCK ASSEMBLY

(a) Inspect SMRB.

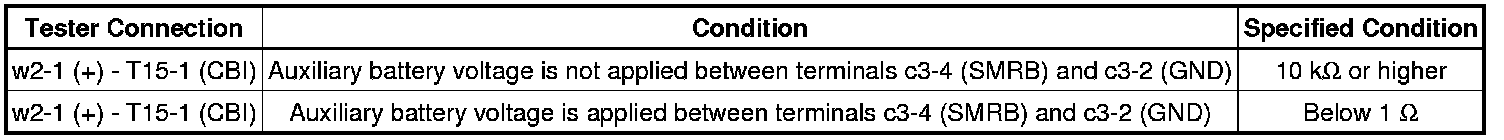

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





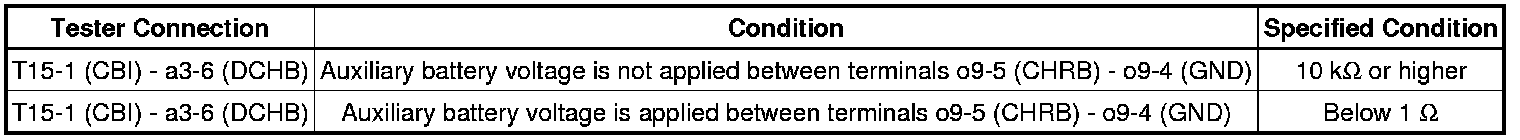

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(b) Inspect SMRG.

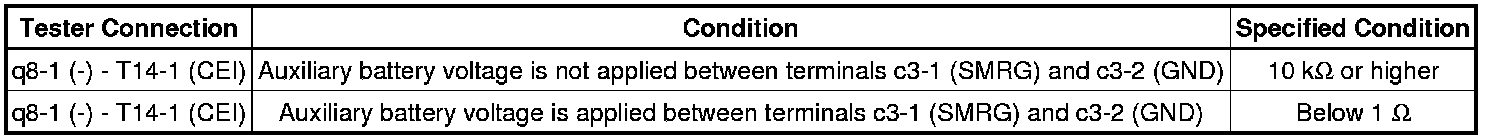

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Inspect SMRP.

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration

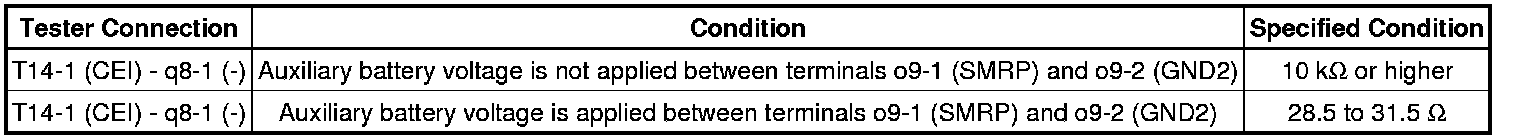

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

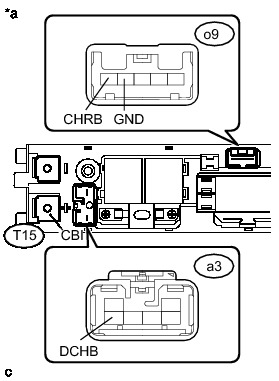

(d) Inspect CHRB.

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

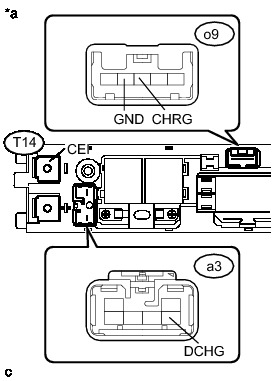

(e) Inspect CHRG.

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration

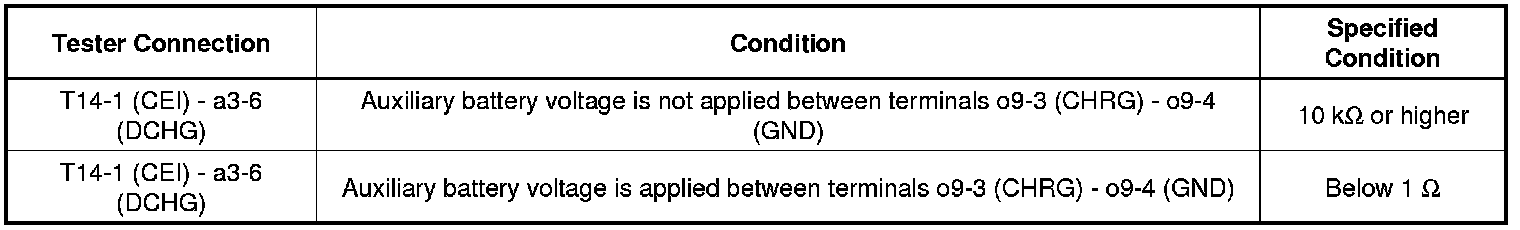

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:
