Relay

HYBRID / BATTERY CONTROL: RELAY: ON-VEHICLE INSPECTION

1. INSPECT IGNITION CONTROL RELAY (IGCT)

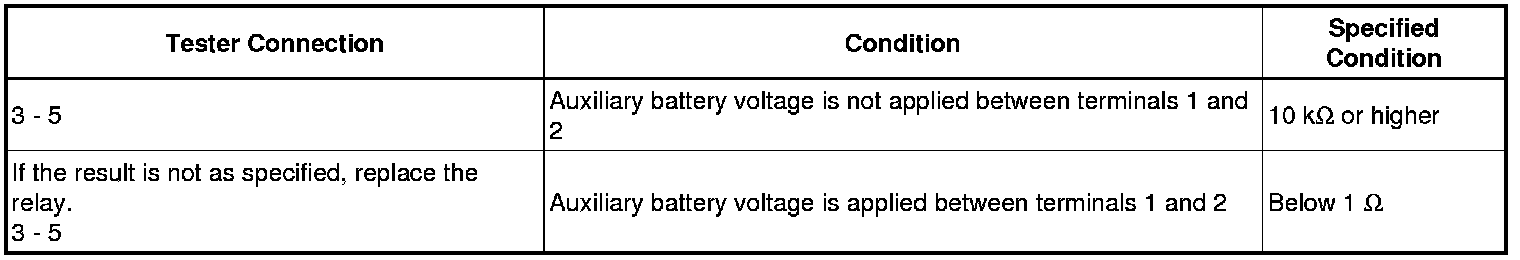

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration
