Installation

HEATING / AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR (for Sedan): INSTALLATION

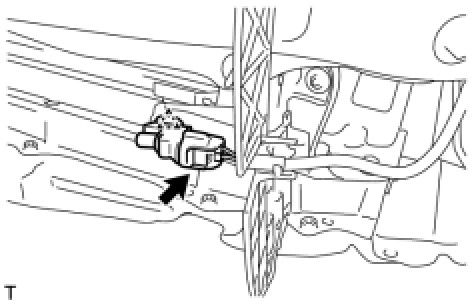

1. INSTALL AMBIENT TEMPERATURE SENSOR





(a) Engage the clamp and install the ambient temperature sensor.

(b) Connect the connector.

2. INSTALL FRONT BUMPER COVER Installation

3. INSTALL FRONT SPOILER COVER Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
