Locations
>>
Connector Locations
Connector Locations

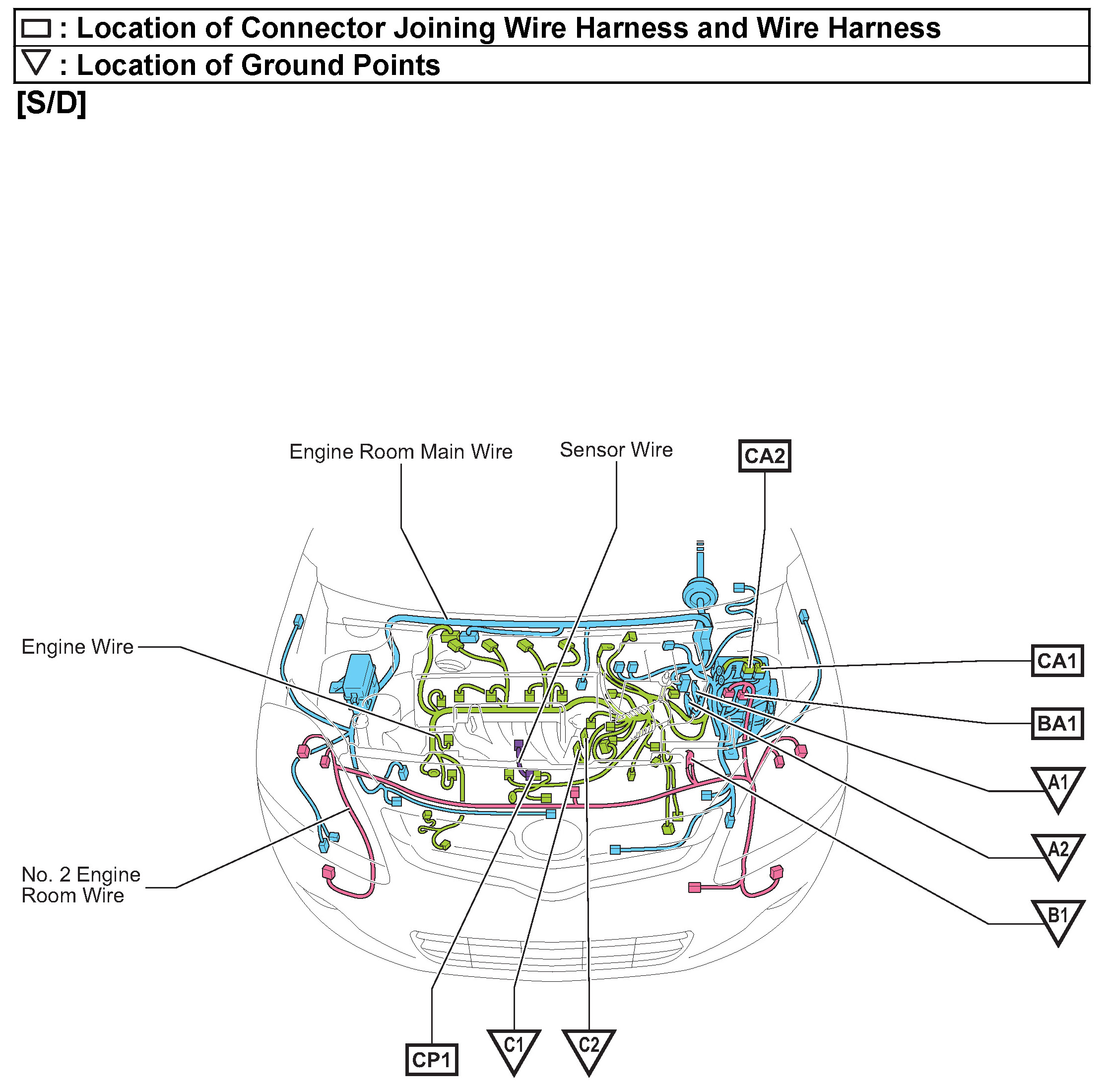

91 - A1-C2 / BA1-CP1:

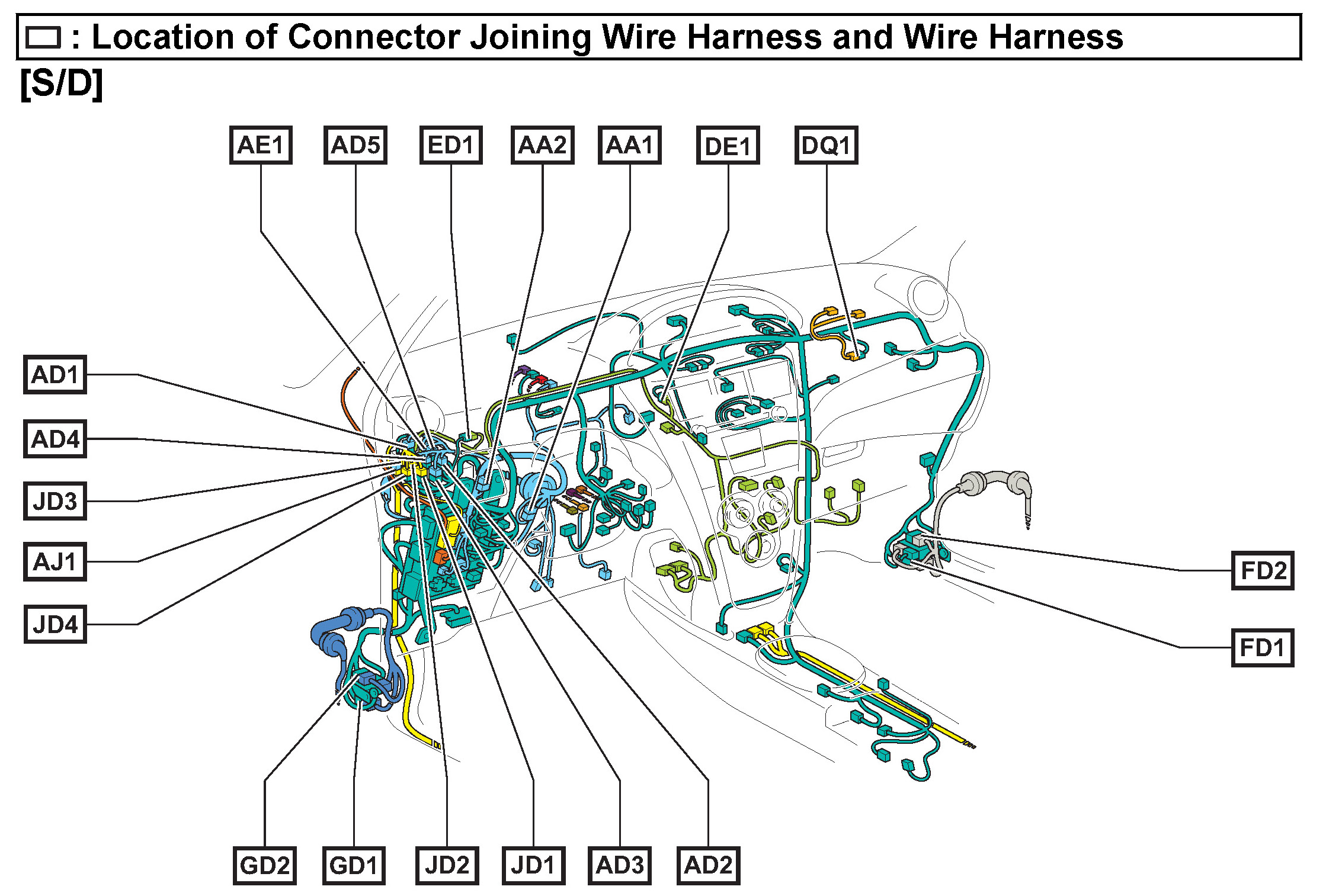

93 - AA1-JD4:
[5-Door]
94 - G1-T1 / aJ3-ST1:
[3-Door]
95 - G1-T1 / aJ3-ST1:
[4-Door]
96 - J1-O1 / aJ2-ZJ2:
