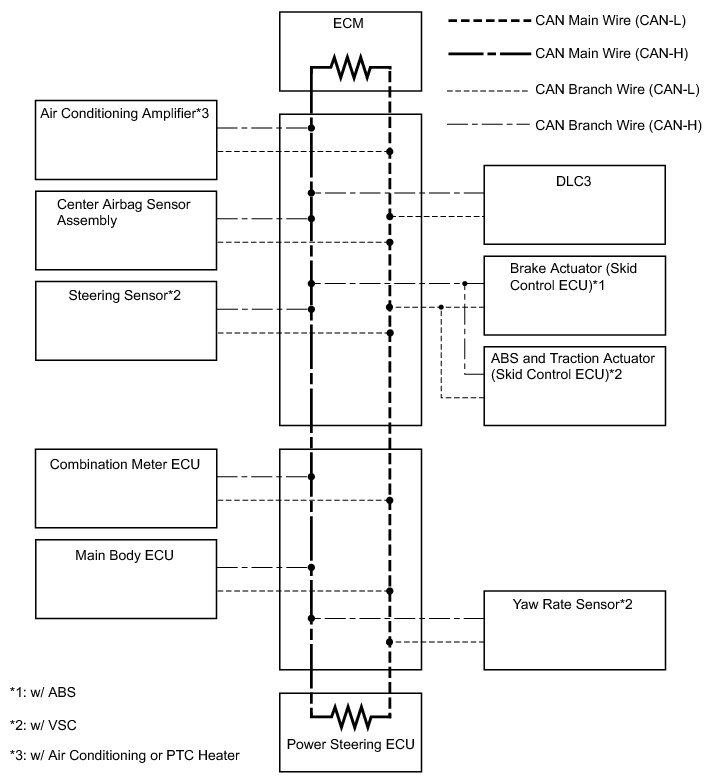

System Diagram
NETWORKING: CAN COMMUNICATION SYSTEM (for Sedan): SYSTEM DIAGRAM
HINT
The power steering ECU and center airbag sensor assembly use the CAN communication system to perform DTC communication instead of the conventional communication line (SIL).
