Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2012
>>
Yaris Sedan L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

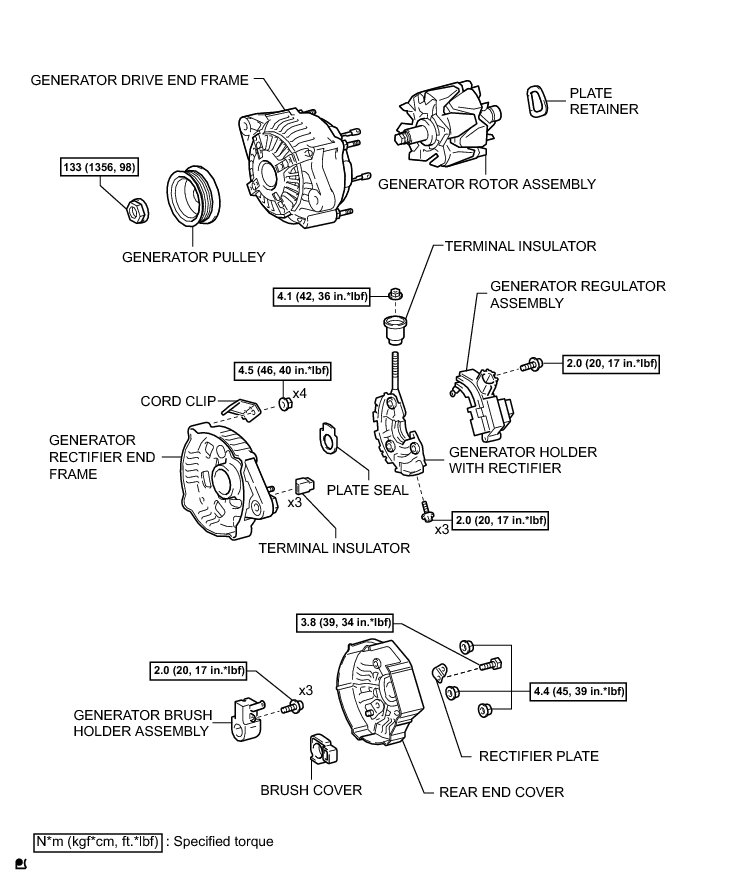

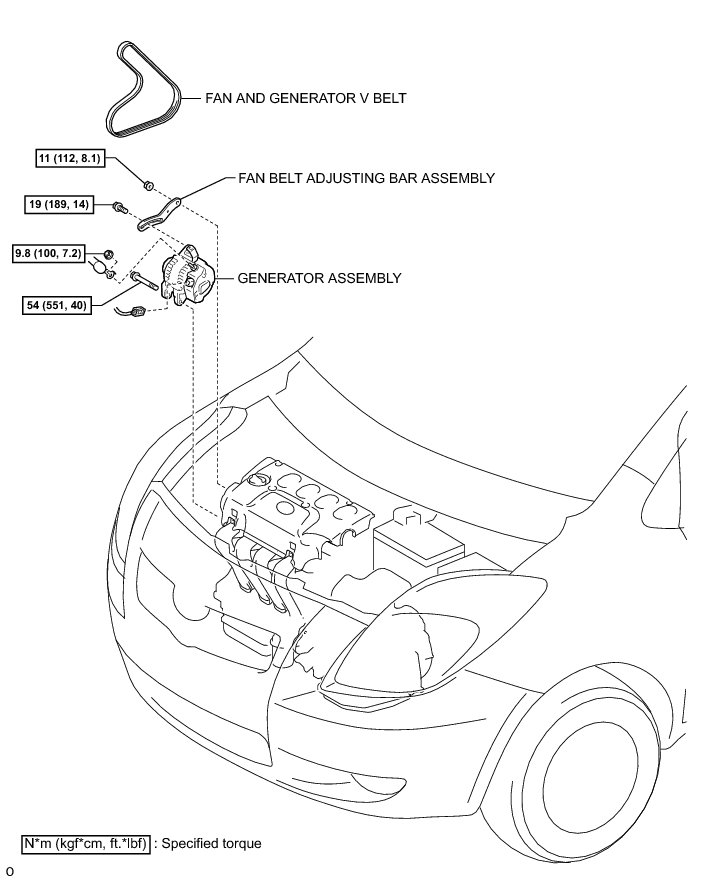

1NZ-FE BATTERY / CHARGING: GENERATOR (for Sedan): COMPONENTS
