Ignition Switch Lock Cylinder: Testing and Inspection

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Sedan): INSPECTION

1. INSPECT STEERING LOCK OPERATION

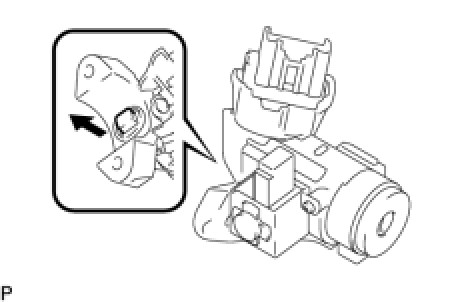

(a) Remove the key and check that the steering lock function is activated.

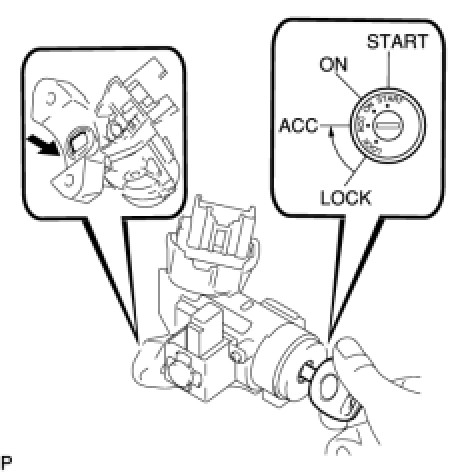

(b) Insert the key, turn the ignition switch to on (ACC) and check that the steering lock function is inactivated.
