Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2013
>>
Prius V L4-1.8L (2ZR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Relay
>>
Locations
Ignition Relay: Locations

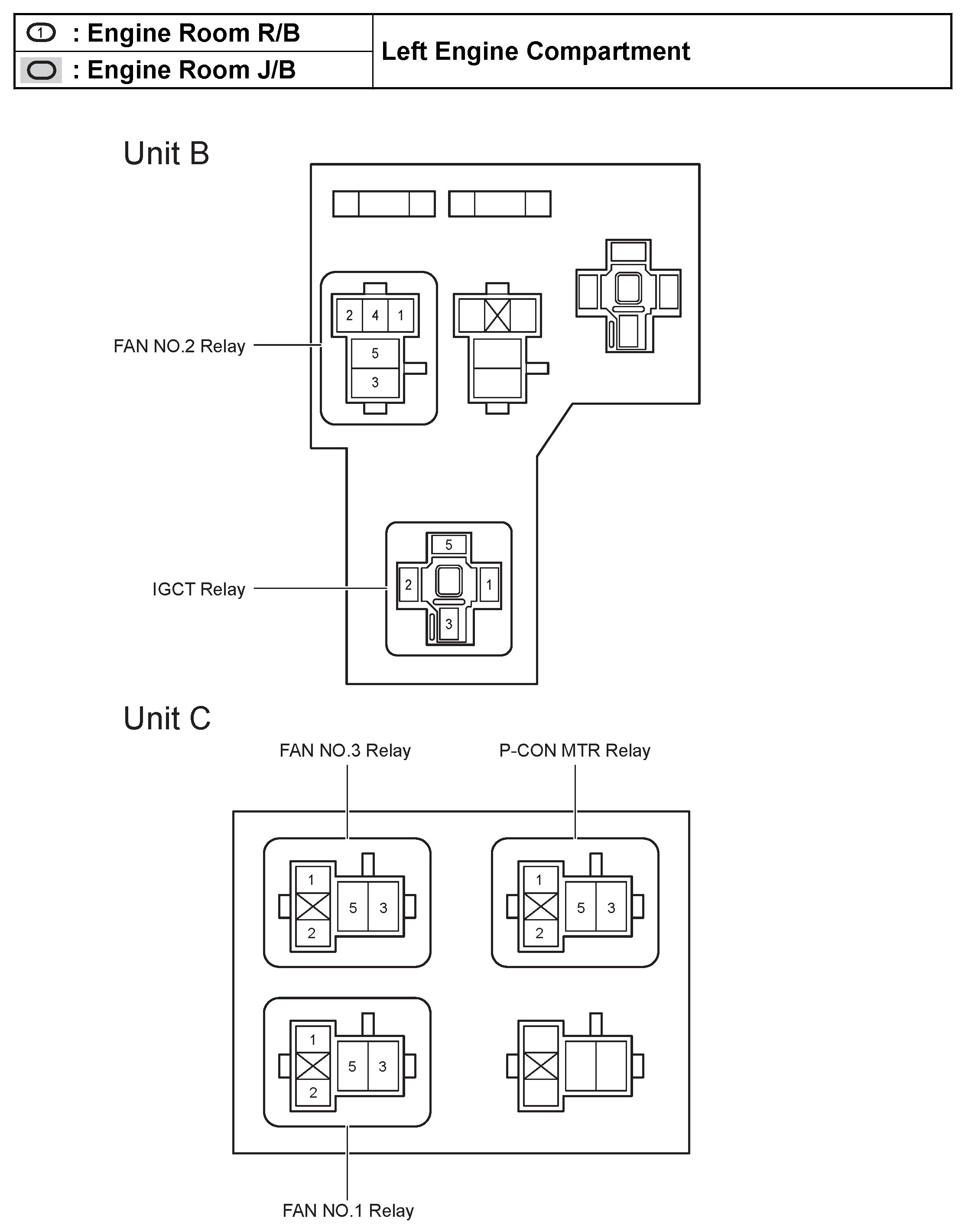

Engine Room R/B, Engine Room J/B - Left Engine Compartment:
