Rear Defogger

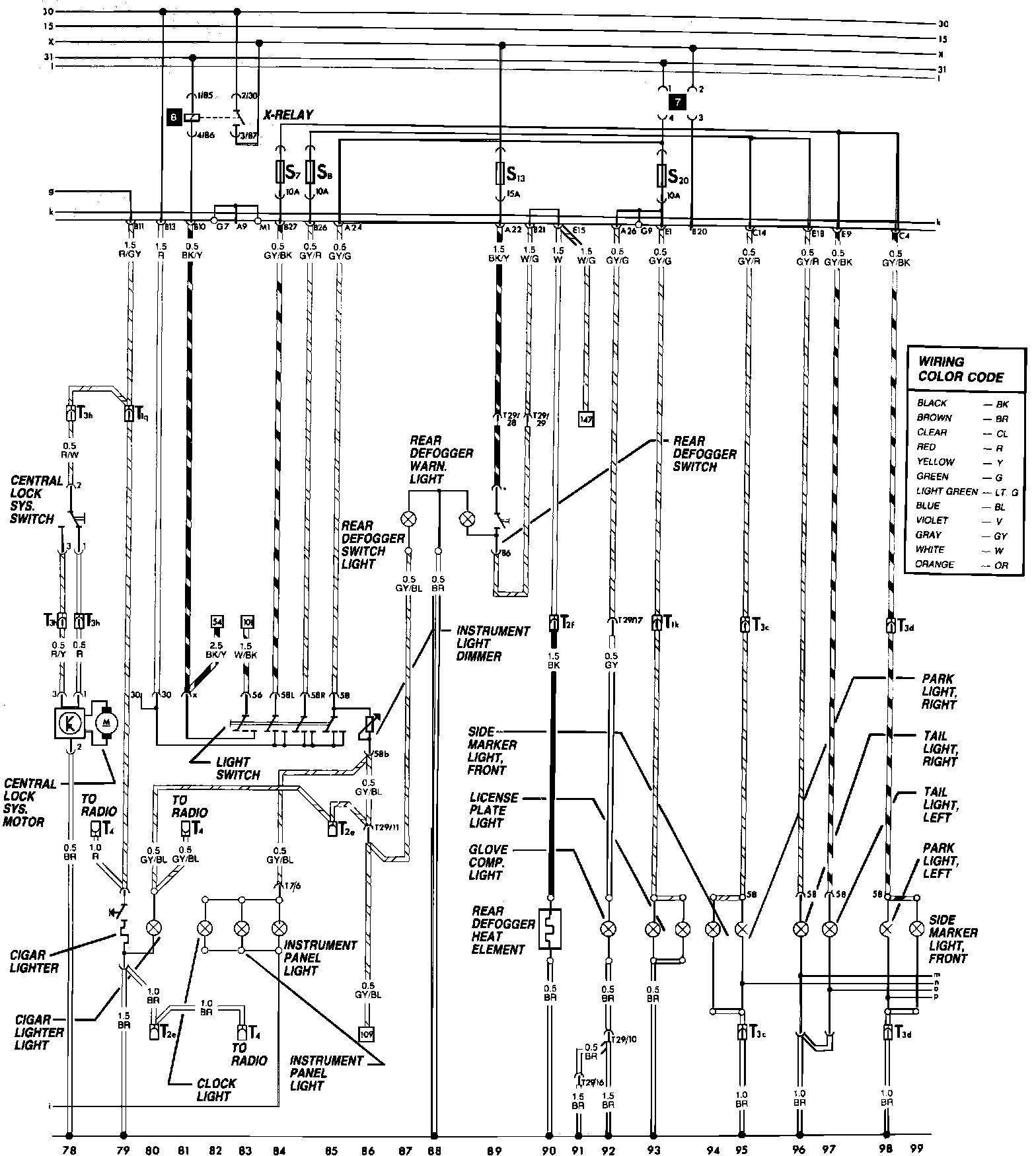

Fig. 10e Cigar Lighter, Rear Defogger, Glove Compartment, Instrument Panel, License Plate, Parking, Side Marker & Tail Lights:
