Ignition Switch

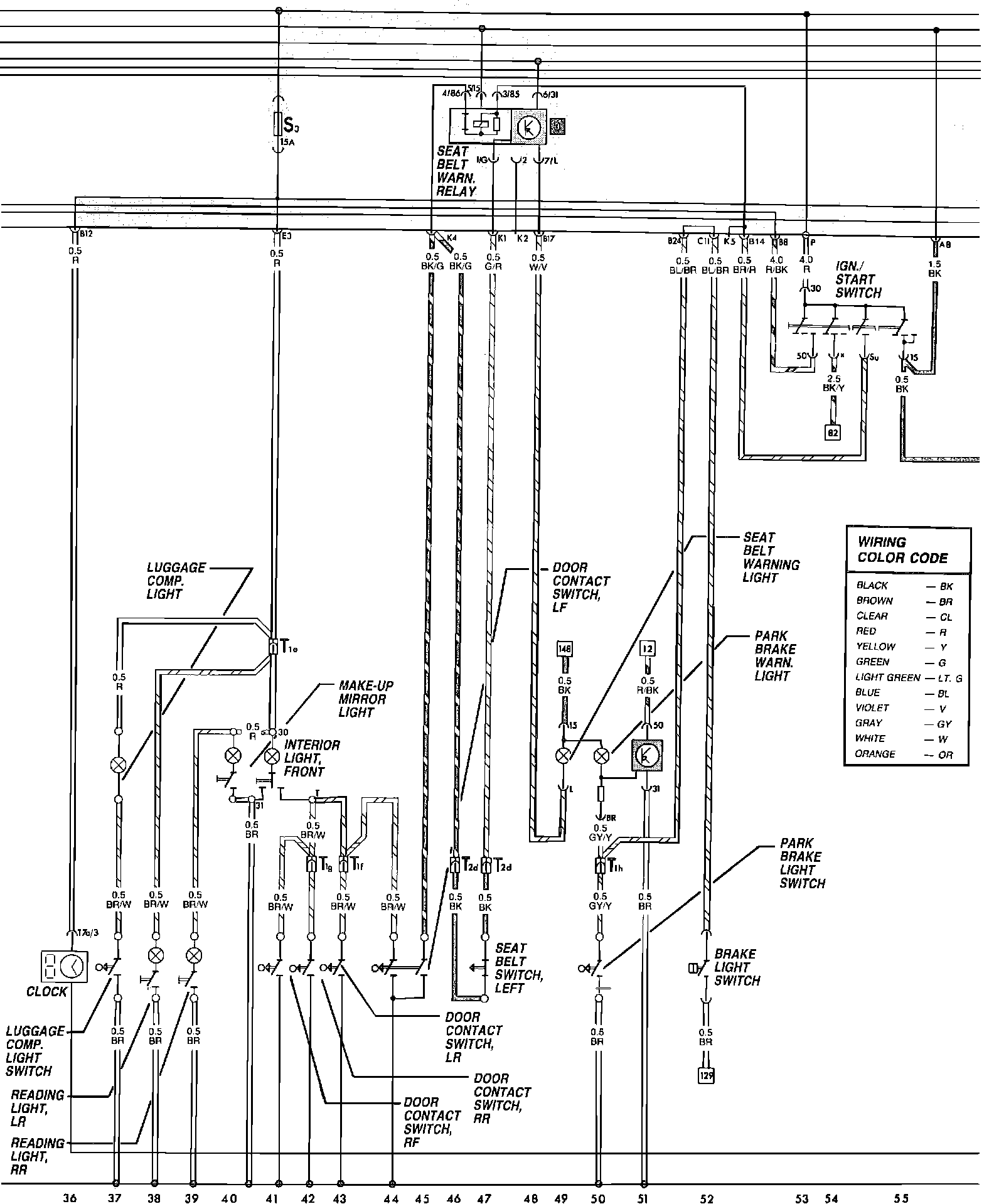

Fig. 10c Brake, Seat Belt Warning, Clock, Ignition, Starting Switch & Luggage Comparment Light:
