Temperature Warning Lamp/Indicator, Engine Cooling
Temperature Warning Lamp/Indicator, Engine Cooling

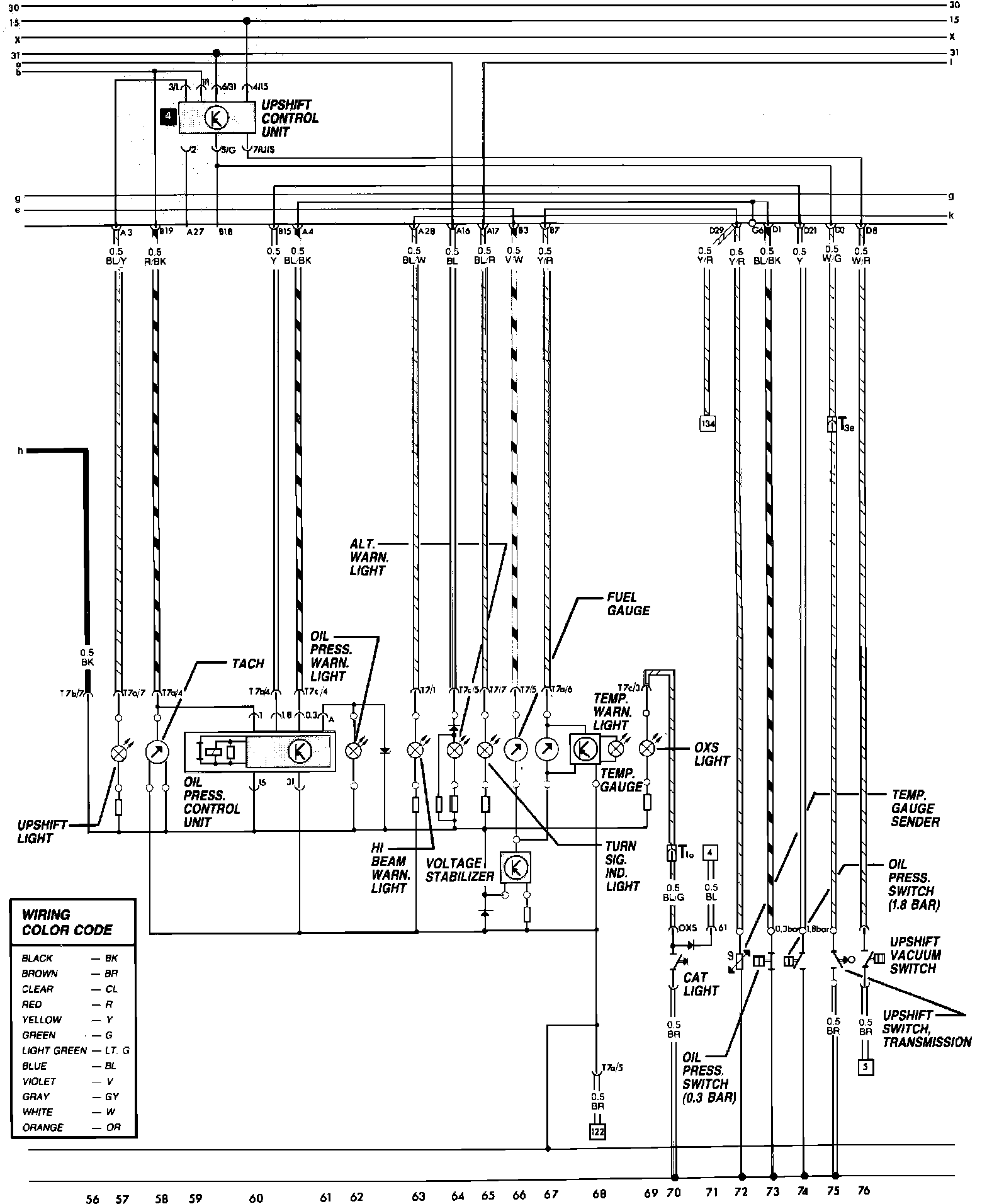

Fig. 10d Alternator, Oil Pressure, Temperature Warning, Fuel Gauge, Oil Pressure Control Unit & Upshift Indicator:
