Front Panel

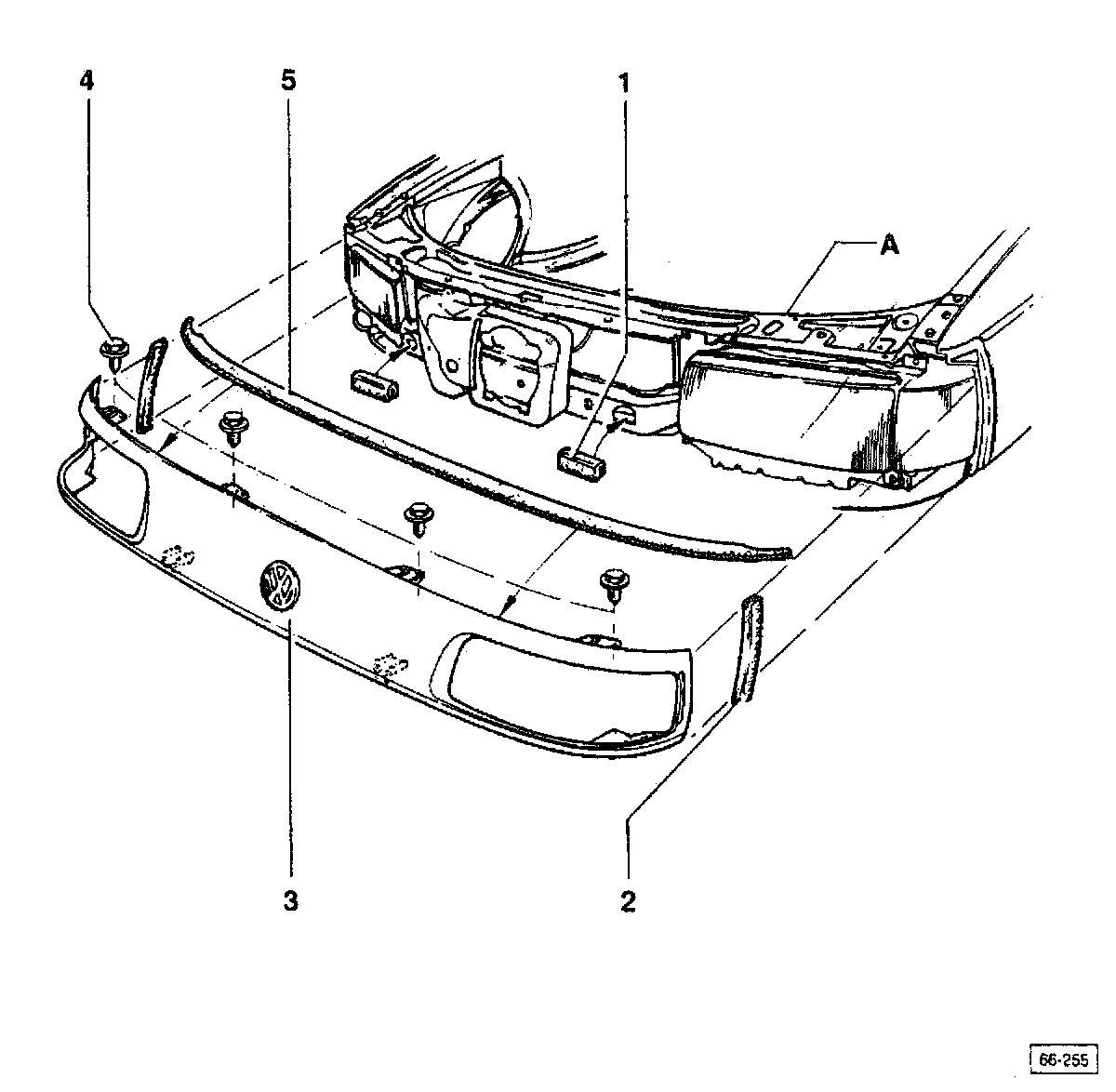

Front Panel Assembly, Removal and Installation





1 - Protective fitting, lock carrier:
• ensure in position before reinstalling front panel.

2 - Edge protector, front fender:
• ensure in position before reinstatling front panel

3 - Front panel:
• removing: remove bolts 4, withdraw front panel at angle and upwards from lock carrier A
• do not damage tabs on panel removing/installing

4 - 5 Nm (3.7 ft lb)

5 - Seal:
• clamping section, remove front panel to take off
