Manifold Pressure/Vacuum Sensor: Testing and Inspection

Manifold Absolute Pressure Sensor, Checking

• Use only gold-plated terminals when servicing terminals in harness connector of Manifold Absolute Pressure (MAP) Sensor (G71).

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram.

Test conditions

• The Engine Control Module (ECM) (J220) OK.

• The parking brake must be applied, otherwise daytime running lights are switched on.

• On vehicles with automatic transmission, selector lever must be in position "P" or "N".

• The ground (GND) connections between engine and body must be OK.

Function test

- Connect the scan tool.

- Start engine and let it run at idle.

- Using the scan tool, Check the specified value of the Manifold Absolute Pressure (MAP) Sensor (G71) at idle:





If the specification is not obtained:

- End of diagnosis and switch ignition off.

Test sequence

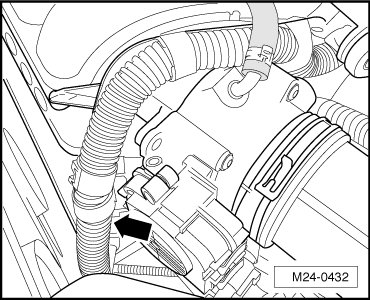

- Disconnect the Manifold Absolute Pressure (MAP) Sensor (G71) electrical harness connector - arrow -.





- Start the engine and run at idle speed.

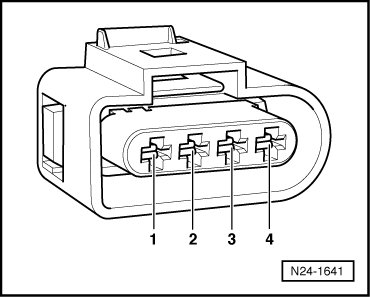

- Using a multimeter, check the Manifold Absolute Pressure (MAP) Sensor (G71) electrical harness connector terminals 1 to 3 for voltage.





Specification: 4.5 V

- Switch the ignition off.

If the specification is not obtained:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

- Install the Adapter Cable (121-pin) (VAG1598/31)

If the manufacturers test box is not being used. Perform the following step.

- Remove the Engine Control Module (ECM) (J220). Refer to => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.

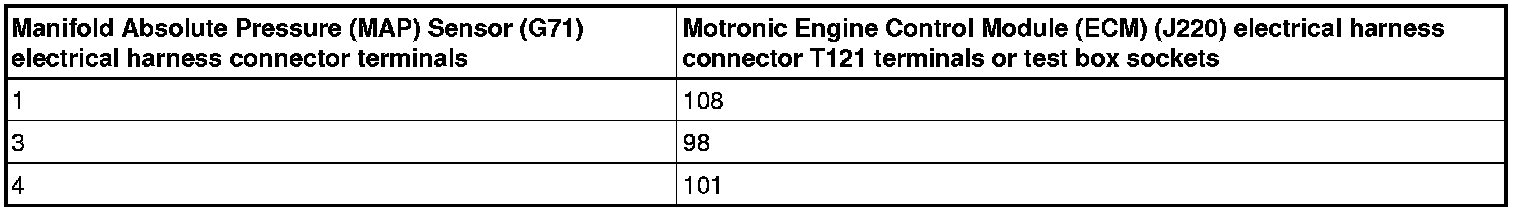

- Using a multimeter, check the Manifold Absolute Pressure (MAP) Sensor (G71) electrical harness connector terminals to the Motronic Engine Control Module (ECM) (J220) electrical harness connector T121 terminals for resistance.









Specified value: 1.5 ohms max.

If the specification is not obtained:

- Check the wiring for an open circuit, short circuit to each other, Battery (+), and Ground (GND).

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring and if the voltage supply was OK:

- Replace Manifold Absolute Pressure (MAP) Sensor (G71).

- Erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory

- Perform a road test to verify repair.

If the DTC does not return:

Repair complete, Generate readiness code. Refer to => [ Readiness Code ] Readiness Code.

- End of diagnosis.

If the DTC does return and no malfunction is detected in the wiring and the voltage supply was not OK:

- Replace the Motronic Engine Control Module (ECM) (J220). Refer to => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.

- Assembly is performed in the reverse of the removal.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Readiness Code.
