Heated Oxygen Sensor Heater Circuit, Checking
Heated Oxygen Sensor Heater Circuit, Checking
• When servicing terminals in the electrical harness connector of Heated Oxygen Sensor (HO2S) (G39), use only gold-plated terminals.
Special tools, testers and auxiliary items required
• Multimeter.
• Wiring diagram.
Test requirements
• Fuse (SB45) OK.
• Battery voltage at least 12.5 volts.
• All electrical consumers such as, lights and rear window defroster, switched off.
• Vehicles with automatic transmission, shift selector lever into position "P" or "N".
• A/C switched off.
• Ground (GND) connections between engine/transmission/chassis OK.
• Ignition switched off.
Test procedure
- Perform a preliminary check to verify the customers complaint. Refer to => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.
Start diagnosis
- Remove the engine cover with air filter.
Checking internal resistance
- Disconnect the Heated Oxygen Sensor (HO2S) (G39) electrical harness connector - 1 -.

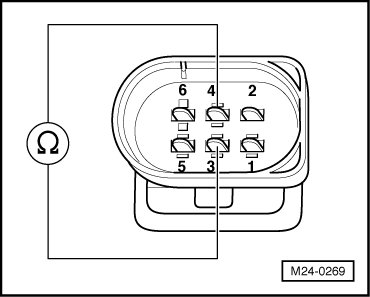

- Using a multimeter, check the Heated Oxygen Sensor (HO2S) (G39) terminals 3 to 4 for resistance.
Specified value: 2.5 to 10.0 ohms (at approx. 20° C)
If the specification was not obtained:
- Replace the Heated Oxygen Sensor (HO2S) (G39)
If the specification is obtained:
Checking voltage supply
- Crank the engine.
- Using a multimeter, check the Heated Oxygen Sensor (HO2S) (G39) electrical harness connector terminal 4 to Ground (GND) for voltage.
- Switch the ignition off.
Specified value: Battery voltage.
If the specification was not obtained:
- Check the Heated Oxygen Sensor (HO2S) (G39) electrical harness connector terminal 4 to the Fuel Pump (FP) Relay (J17) socket 2/87 for an open circuit, a short circuit to each other, or Ground (GND).
- Check the electrical harness connector for damage, corrosion, loose or broken terminals.
- If necessary, repair the faulty wiring connection.
If the specification was obtained:
Checking Ground (GND) activation
If the manufacturers test box is being used. Perform the following step.
- Install the Adapter Cable (121-pin) (VAG1598/31)
If the manufacturers test box is not being used. Perform the following step.
- Remove the Motronic Engine Control Module (ECM) (J220). Refer to => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.

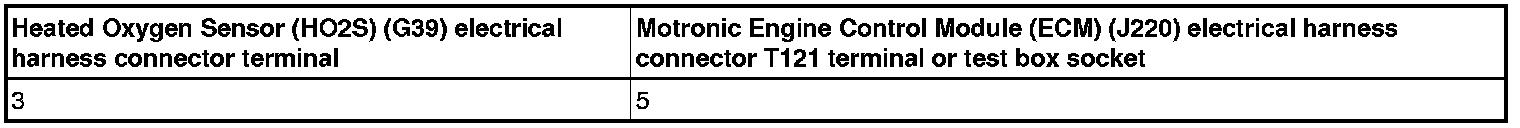

- Using a multimeter, check the Heated Oxygen Sensor (HO2S) (G39) electrical harness connector terminal 3 to the Motronic Engine Control Module (ECM) (J220) electrical harness connector T121 terminal 5 for resistance.
Specified value: 1.5 ohms max.
If the specification was not obtained:
- Check the wiring for an open circuit, short circuit to each other, Battery (+), or Ground (GND).
- Check the electrical harness connector for damage, corrosion, loose or broken terminals.
- If necessary, repair the faulty wiring connection.
If no malfunction is detected in the wiring and if the voltage supply was OK:
- Erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.
- Perform a road test to verify repair.
If the DTC does not return:
Repair complete, Generate readiness code. Refer to => [ Readiness Code ] Readiness Code.
- End of diagnosis.
If the DTC does return and no malfunction is detected in the wiring and the voltage supply was OK:
- Replace the Motronic Engine Control Module (ECM) (J220). Refer to => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.
- Assembly is performed in the reverse of the removal.
Final procedures
After the repair work, the following work steps must be performed in the following sequence:
1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory.
2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.
3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Readiness Code.
