Generator Overview

Generator Overview


When disconnecting and connecting the Battery, the procedure must be followed as described in the repair information. Refer to=> [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

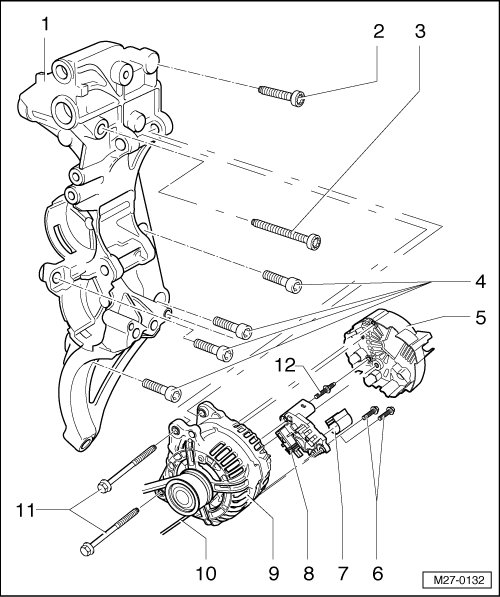

1 Accessories Bracket

• For Generator and A/C compressor.

2 Internal Multi-Point Bolt

• 25 Nm

3 Internal Multi-Point Bolt

• 25 Nm

4 Hex Socket Head Bolts

• 25 Nm

• Quantity: 4

5 Generator Cover

6 Phillips Head Screws

• 2 Nm

7 Cap For The Carbon Brushes

8 Voltage Regulator (C1)

• Removal and installation, refer to => [ Voltage Regulator ] Service and Repair.

9 Generator (C)

• Removal and installation, refer to => [ Generator ] Generator.

• Checking, refer to=> [ Generator, Checking ] Testing and Inspection.

• B+ wire mount, refer to => [ B+ Wire Connection to Generator ] Procedures.

• Removing and installing the ribbed belt pulley, refer to=> [ Ribbed Belt Pulley on Generator ] Ribbed Belt Pulley on Generator.

10 Ribbed Belt

• Checking, refer to=> [ Ribbed Belt, Checking ] Ribbed Belt, Checking.

• For removing and installing.

• For the correct routing.

11 Collar Bolts

• 25 Nm

• Quantity: 2

No Illustration

• B+ wire nut on the back of the generator: 15 Nm

• Wire holder nut on the back of the generator: 3.2 Nm

• Ribbed belt pulley without freewheel: 65 Nm

• Ribbed belt pulley with freewheel: 80 Nm

• Auxiliary component bracket, removing and installing.
