Lock Carrier Service Position Assembly Overview

Lock Carrier Service Position Assembly Overview

Special tools, testers and auxiliary items required

• Guide rod (T10093)

• Torque wrench (V.A.G 1331)

• Torque wrench (V.A.G 1332)

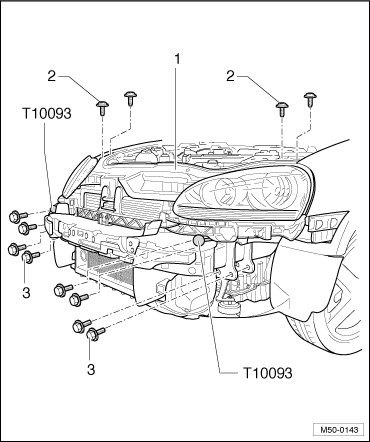

1 Lock Carrier with Attachments

• Removing and installing, refer to=> [ Lock Carrier with Attachments ] Removal and Replacement

• Service position, refer to => [ Lock Carrier Service Position ] Lock Carrier Service Position

2 Screw

• Qty. 4

• 8 Nm

3 Bolt

• Qty. 8

• 60 Nm
