Control Modules Overview
Control Modules- Control Module Multi-Pin Connector Views,

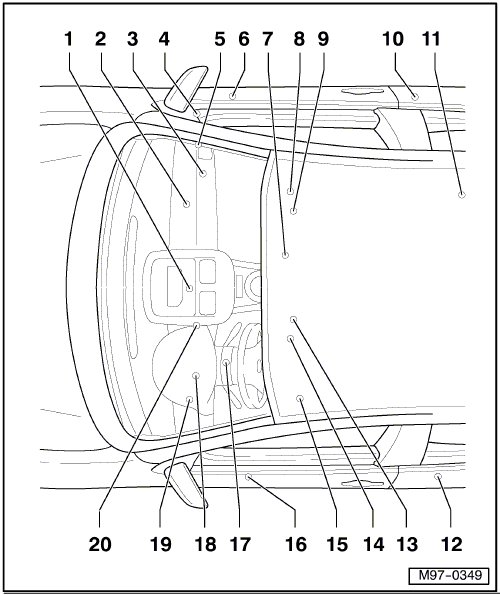

Control Modules overview,
1 - Airbag Control Module -J234-
• Location => [ Airbag Control Module -J234- ] Airbag Control Module -J234-
• Pin Arrangements 50 pin
• Connector 50 pin
• Connector 75 pin
2 - Auxiliary Air Heater Control Module -J604-
3 - Comfort System Central Control Module -J393-
• Location => [ Comfort System Central Control Module -J393- ] Comfort System Central Control Module -J393-
• Pin Arrangements
• Connector
4 - Vehicle Inclination Sensor -G384-
• Europe Market only
• Location => [ - G384 - Vehicle Inclination Sensor ] Anti-Theft Alarm Systems
5 - Headlamp Range Control Module -J431-
• Europe Market only
• Location => [ Headlamp Range Control Module -J431- ] Locations
• Pin Arrangements
• Connector
6 - Front Passenger Door Control Module -J387-
7 - Operating Electronics and Telephone Control Module- J412 -
• Europe Market only
• Location => [ Operating Electronics and Telephone Control Module -J412- ]Locations
• Pin Arrangements
• Connector
8 - Heated Front Passenger Seat Control Module -J132-
9 - Antenna Selection Control Module -J515-
• Europe Market only
• Location => [ Antenna Selection Control Module - J515- Locations
10 - Right Rear Door Control Module -J389-
• Location Central Locking / Anti-Theft Systems
• Pin Arrangements =
• Connector
11 - Fuel Pump (FP) Control Module -J538-
• Location => [ Fuel Pump (FP) Control Module -J538- ] Fuel Pump (FP) Control Module -J538-
• Pin Arrangements
• Connector
12 - Left Rear Door Control Module -J388-
• Location => [ Left Rear Door Control Module -J388- ] Central Locking / Anti-Theft Systems
• Pin Arrangements
• Connector
13 - Amplifier -R12-
14 - Memory Seat/Steering Column Adjustment -J136-
15 - Heated Driver Seat Control Module -J131-
• Location => [ Heated Driver Seat Control Module -J131- ] Heated Driver Seat Control Module -J131-
16 - Driver Door Control Module -J386-
• Location => [ Driver Door Control Module -J386- ] Central Locking / Anti-Theft Systems
• Pin Arrangements
• Connector
17 - Steering Column Electronic Systems Control Module -J527-
• Location => [ Steering Column Electronic Systems Control Module -J527- ] Steering Column Electronic Systems Control Module -J527-
• Pin Arrangements
18 - Instrument Cluster Control Module -J285-
• Pin Arrangements => [ Pin Arrangements: ] Steering Column Electronic Systems Control Module -J527-
• Connector
19 - Vehicle Electrical System Control Module -J519-
• Location => [ Vehicle Electrical System Control Module -J519- ] Vehicle Electrical System Control Module -J519-
• Pin Arrangements
• Connector
20 - Data Bus On Board Diagnostic Interface -J533-
• Location => [ Data Bus On Board Diagnostic Interface -J533- ] Locations
• Pin Arrangements
• Connector
