Generator Overview

Generator Overview


When disconnecting and connecting the Battery, the procedure must be followed as described in the repair information. Refer to=> [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

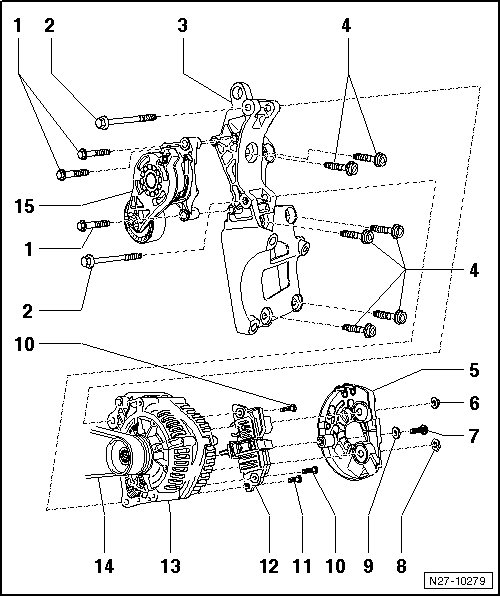

1 Collar Bolts

• 23 Nm

2 Collar Bolts

• 23 Nm

3 Accessories Bracket

• For Generator and A/C compressor.

4 Collar Bolts

• 45 Nm

5 Cap

6 Hex Head Collar Nut

7 Phillips Head Screw

• 4.5 Nm

8 Nut

9 Washer

10 Phillips Head Screws

• 2 Nm

11 Phillips Head Screw

• 2 Nm

12 Voltage Regulator (C1)

• Removal and installing, refer to => [ Voltage Regulator ] Service and Repair.

13 Generator

• Removal and installation, refer to => [ Generator ] Generator.

• Checking, refer to=> [ Generator, Checking ] Testing and Inspection.

• B+ wire mount, refer to => [ B+ Wire Connection to Generator ] Procedures.

14 Ribbed Belt

• Checking, refer to=> [ Ribbed Belt, Checking ] Ribbed Belt, Checking.

• Removal and installation

• For the ribbed belt routing.

15 Ribbed Belt Tensioner

No Illustration

• B+ wire nut on the back of the generator: 15 Nm

• Wire holder nut on the back of the generator: 3.2 Nm

• Ribbed belt pulley without freewheel: 65 Nm

• Ribbed belt pulley with freewheel: 80 Nm

• Auxiliary component bracket, removing and installing.
