Manual Transmission

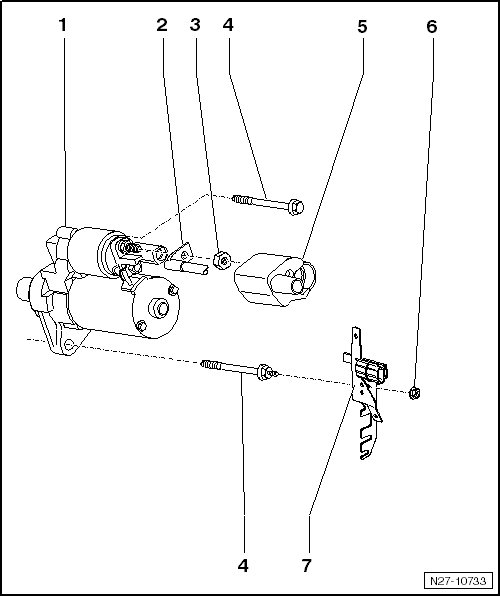

Starter Overview






1 Starter

• Checking, refer to=> [ Starter, Checking ] Testing and Inspection.

2 Connection, B+ Wire To Starter

3 Nut

• 15 Nm

4 Bolt

• 75 Nm

5 Cap

6 Nut

• 23 Nm

7 Wiring Bracket

No Illustration

• Screw, air filter housing to body - 10 Nm
