Camshaft Adjustment Valve 1, Checking

Camshaft Adjustment Valve 1, Checking

Special tools, testers and auxiliary items required

• Multimeter

• wiring diagrams

Test requirements

• Fuse for Camshaft Adjustment Valve 1 (N205) OK.

• Motronic Engine Control Module (ECM) Power Supply Relay (J271) OK.

• Battery voltage at least 12.5 volts.

• All electrical consumers such as, lights and rear window defroster, switched off.

• Vehicles with automatic transmission, shift selector lever into position " P" or "N".

• A/C switched off.

• Ground (GND) connections between engine/transmission/chassis OK.

• Ignition switched off.

Test procedure

- Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] Preliminary Check.

Start diagnosis

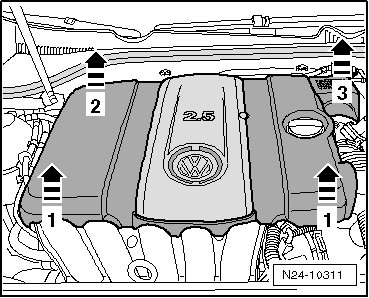

- Pull engine cover out of first mount at front arrow 1, then at right rear arrow 2 and finally at left rear arrow 3.

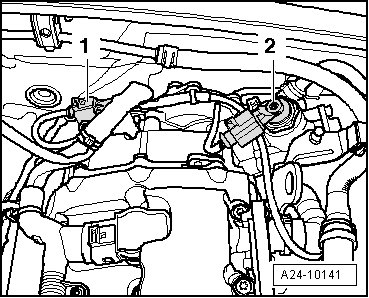

- Disconnect the electrical harness connector - 1 - from Camshaft Adjustment Valve 1 (N205).





- Using a Multimeter, check the Camshaft Adjustment Valve 1 (N205) for resistance at the component terminals.

Specified value: 5.0 to 8.0 ohms (at approx. 20°C)

If the specification is not obtained:

- Replace Camshaft Adjustment Valve 1 (N205).

If the specification is obtained:

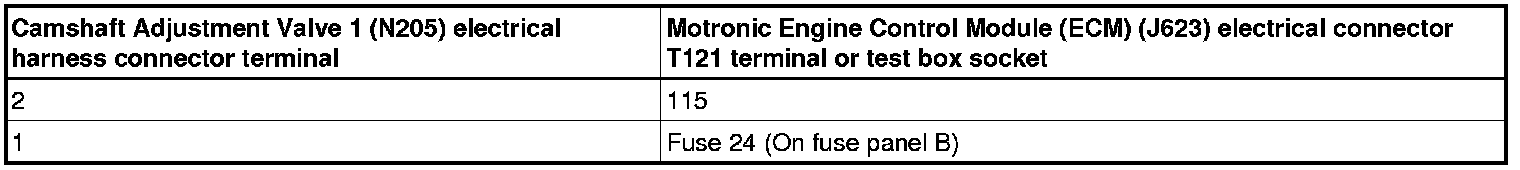

- Using a Multimeter , check the following wiring connection for an open circuit.









Specified resistance 1.5 ohms max.

If the specification is not obtained:

- Check the wiring for a short circuit to Battery positive (+) or an open circuit.

- If necessary, repair the wiring connection.

- Erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory

- Perform a road test to verify repair.

If the DTC does not return:

Repair complete, Generate readiness code. Refer to => [ Readiness Code ] Readiness Code.

- End diagnosis.

If the DTC does return and no malfunction is detected in the wiring and the voltage supply was OK:

- Replace the Motronic Engine Control Module (ECM) (J623). Refer to => [ Motronic Engine Control Module, Replacing ] Motronic Engine Control Module, Replacing.

- Assembly is performed in the reverse of the removal.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code, Setting ] Readiness Code, Setting.

End of Diagnosis.
