Headlamp Washer System Assembly Overview
Headlamp Washer System Assembly Overview
• Additional information:
318Golf 2004
319Golf 2004 - Electrical System
=> Owner's Manual
For every fifth activation of windshield washer system, headlamps are also washed if windshield wiper lever is pulled toward steering wheel for at least 1.5 seconds - as long as low beam or high beam headlamps are switched on.
The "active time" of headlamp cleaning system can be adjusted variably between 0 seconds and 12.75 seconds.
After assembly work or when first operating headlamp cleaning system, it must be ventilated to ensure proper function of lift cylinders and spray nozzles. Refer to => [ Headlamp Washer System, Bleeding ] Headlamp Washer System, Bleeding.
DTC recognition and display:
Vehicle Electrical System Control Module (J519) is equipped with On Board Diagnostics (OBD) which assists in troubleshooting.
For fault-finding, use the Vehicle Diagnostic, Testing and Information System (VAS 5051A), and the "Guided fault finding" function.

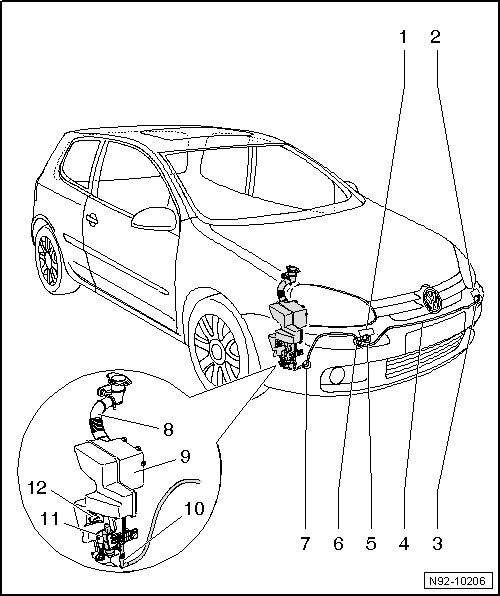

1 Spray nozzle holder with spray nozzle, right
• Washer jet retainer, removing and installing, refer to=> [ Spray Nozzle Holder ] Spray Nozzle Holder
• Spray Nozzles, Adjusting
• Lift cylinder for spray nozzles, removing and installing, refer to=> [ Spray Nozzle Lift Cylinder ] Spray Nozzle Lift Cylinder
2 Spray nozzle holder with spray nozzle, left
• Washer jet retainer, removing and installing, refer to=> [ Spray Nozzle Holder ] Spray Nozzle Holder
• Spray Nozzles, Adjusting
• Lift cylinder for spray nozzles, removing and installing, refer to=> [ Spray Nozzle Lift Cylinder ] Spray Nozzle Lift Cylinder
3 Angle coupling
• Connection to lift cylinder for left spray nozzle
• Washer hose couplings
4 Hose
5 Angle coupling
• Connection to lift cylinder for right spray nozzle
• Divides washer fluid line to spray nozzles of headlamp cleaning system
• Washer hose couplings
6 T-piece
• Divides washer fluid line to spray nozzles of headlamp cleaning system
7 Angle coupling
8 Filler tube for tank for windshield washer system and headlamp cleaning system
• Removing and installing, refer to=> [ Windshield and Headlamp Washer Fluid Reservoir Filler Neck ] Windshield and Headlamp Washer Fluid Reservoir Filler Neck
9 Washer fluid reservoir
• removing and installing (vehicles without auxiliary heater), refer to=> [ Windshield and Headlamp Washer System Reservoir, without Auxiliary Heater ] Windshield and Headlamp Washer System Reservoir, without Auxiliary Heater
• removing and installing (vehicles with auxiliary heater), refer to=> [ Windshield and Headlamp Washer System Reservoir, with Auxiliary Heater ] Windshield and Headlamp Washer System Reservoir, with Auxiliary Heater
10 Angle coupling
• Connection on Headlamp Washer Pump (V11)
• Washer hose couplings
11 Headlamp washer system pump (V11)
• Removing and installing, refer to=> [ Headlamp Washer Pump ] Service and Repair
12 Windshield Washer Fluid Level Sensor (G33)
• Removing and installing, refer to=> [ Windshield Washer Fluid Level Sensor ] Service and Repair
