Front Seat Control Module

Front Seats


Front Seat Control Module

• Removal and installation is described for the driver side of the vehicle. Removal and installation for the front passenger side is performed in the same manner.

Removing

- Position seat into the front-most position via the fore/aft adjustment.

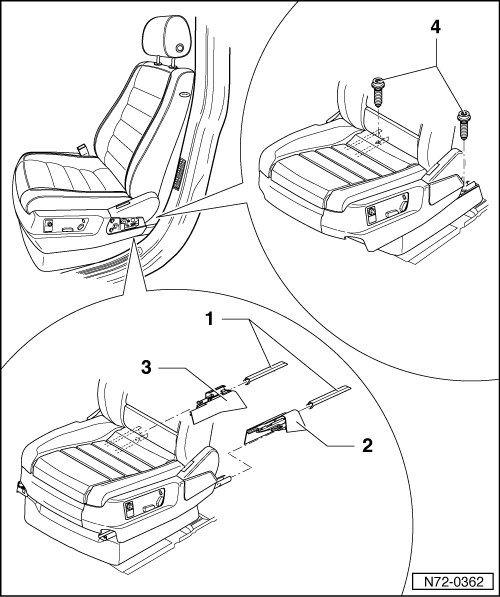

- Remove covers from both spindles - 1 - --> [ Seat Rail Covers ]. Seat Rail Covers

- Remove caps - 2 - and - 3 - from both seat rails --> [ Seat Rail Covers ]. Seat Rail Covers

- Remove bolts - 4 - (45 Nm) from both seat rails.

• The bolts are microencapsulated and must therefore be replaced after every removal.

• Before installing the new bolts, the threads of the corresponding nuts must be cleaned.





- Position seat as far back as possible using fore/aft adjustment.

- Switch off ignition.

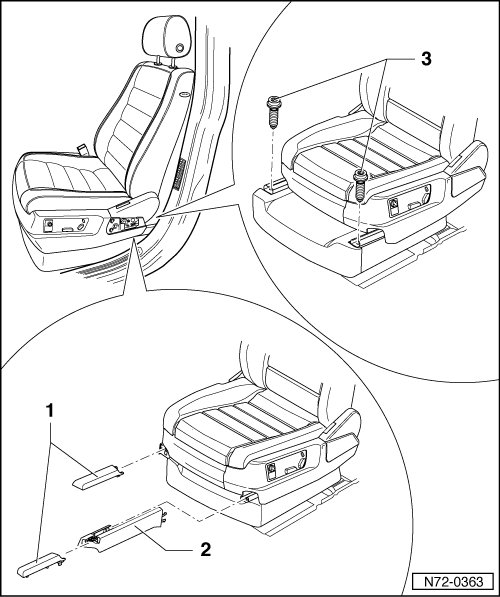

- Remove covers from both spindles - 1 - --> [ Seat Rail Covers ]. Seat Rail Covers

- Remove covers - 2 - from the outer seat rail --> [ Seat Rail Covers ]. Seat Rail Covers

- Remove bolts - 3 - (45 Nm) from both seat rails.

• The bolts are microencapsulated and must therefore be replaced after every removal.

• Before installing the new bolts, the threads of the corresponding nuts must be cleaned.





- Lift front of seat until the memory seat/steering column adjustment control module (J136) becomes accessible.

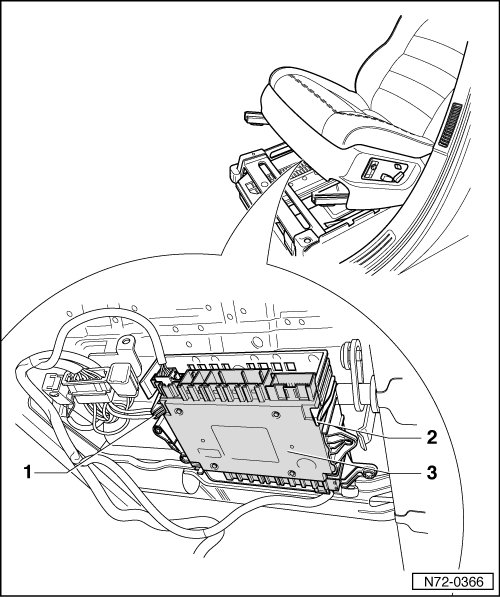

- Pull the side tabs - 1 - and - 2 - outward and remove the control module - 3 - from the mountings.

- Separate all connectors from the control module.





Installing

- Perform the steps used for removal in reverse order.
