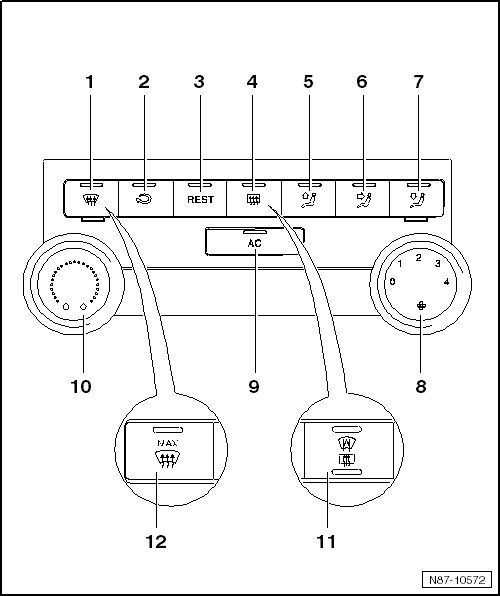

A/C Display Control Head with A/C Control Module

A/C Display Control Head with A/C Control Module





1 Button for defrosting windshield

2 Button for air recirculation

• Press button for recirculating air function to prevent polluted air from entering interior.

3 REST button

• When residual heat function is switched on the residual heat of engine is pumped by a coolant pump to the heat exchanger.

4 Button for rear window heating

• This button can also control the windshield defroster, depending on the vehicle equipment.

5 Button - upper air distribution

6 Button - center air distribution

7 Button - lower air distribution

8 Blower regulator

• Changed blower speed by turning.

9 Push button for A/C system on/off

10 Temperature regulator

• Changed temperature setting by turning.

11 Rear defroster/windshield defroster button

• optional on vehicles with windshield defroster

12 Button for defrosting windshield

• identified with "MAX"
