Air Flow Meter/Sensor: Testing and Inspection
Diagnostic Procedures
Mass Air Flow Sensor, Checking
• Use only gold-plated terminals when servicing terminals in harness connector of Mass Air Flow (MAF) sensor.
Special tools, testers and auxiliary items required
• Multimeter (VAG1526) or Multimeter (VAG1715)
• Connector test kit (VAG1594)
• Wiring diagram
Test requirements

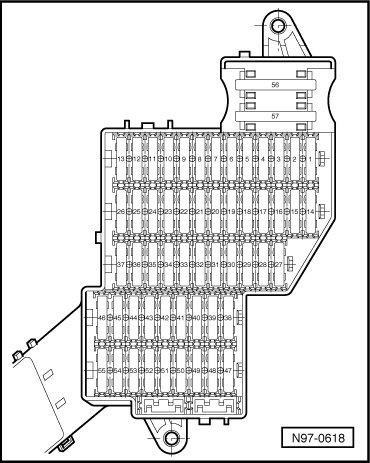

• Fuses in E-box (plenum chamber, left) must be OK:
• The respective fuses of Mass Air Flow (MAF) Sensor (G70) must be OK:
• Battery voltage must be at least 11.5 volts.
• All electrical consumers such as, lights and rear window defroster must be switched off.
• Parking brake must be engaged or else daylight driving lights will be switched on.
• For vehicles with automatic transmission, selector lever must be in P.
• If vehicle is equipped with an A/C system, it must be switched off.
• Ground (GND) connections between engine and chassis must be OK.
• Coolant temperature must be at least 80° C, Diagnostic mode 1: Check measured values; PID 5, Coolant temperature.
Function test
- Connect diagnostic tester.
- Start engine and let run at idle.
- Under address word 33, select "Diagnostic mode 1: Checking measured values."
- Select the measuring value "PID 16: Air flow quantity at Mass Air Flow (MAF) sensor".
- Check specified value of air flow quantity at Mass Air Flow (MAF) Sensor at idle:
- End diagnosis and switch ignition off.
If specified value is obtained, but DTC memory has a DTC concerning Mass Air Flow (MAF) sensor:
- Check voltage supply of Mass Air Flow (MAF) sensor.
If specified value is not obtained:
- Check signal and Ground (GND) wires of Mass Air Flow (MAF) sensor.
Voltage supply for Mass Air Flow (MAF) sensor, checking

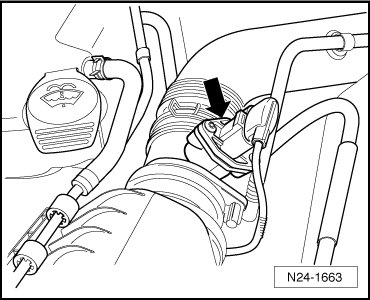

- Disconnect 5-pin connector from Mass Air Flow (MAF) Sensor (G70) with Intake Air Temperature (IAT) Sensor (G42) (arrow).

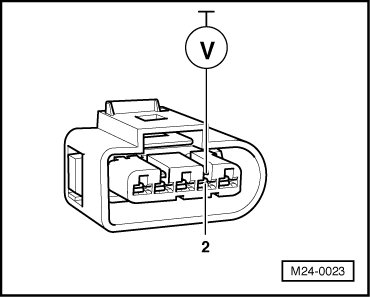

- Connect multimeter to terminal 2 of connector and engine Ground (GND) for voltage measurement.
- Start engine, and let run at idle.
Specified value: at least 11.0 V
- Switch ignition off.
If there is no voltage:
- Check voltage supply at 5-pin connector terminal 2 according to wiring diagram:
- Erase DTC memory of Engine Control Module (ECM), Diagnostic mode 4: Reset/erase diagnostic data.
- Generate readiness code.
If voltage supply and wires are OK:

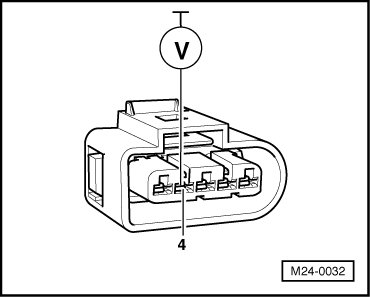

- Connect multimeter to terminal 4 of connector and engine Ground (GND) for voltage measurement.
- Switch ignition on.
Specified value: at least 4.5 V
- Switch ignition off.
If there is no voltage:
- Check signal and Ground (GND) wires of Mass Air Flow (MAF) sensor.
Checking signal and Ground wires of Mass Air Flow (MAF) Sensor
- Disconnect 5-pin connector from Mass Air Flow (MAF) Sensor (G70) with Intake Air Temperature (IAT) Sensor (G42) (arrow).
- Connect test box.

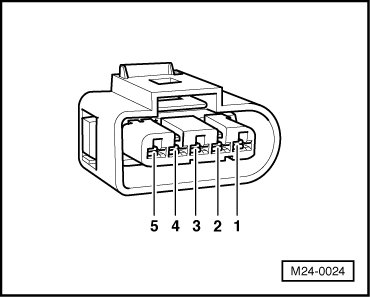

- Check wires between test box and 5-pin connector for open circuit according to wiring diagram.
Terminal 3 + socket 27
Terminal 4 + socket 53
Terminal 5 + socket 29
Wire resistance: max. 1.5 ohms
- Also check wires for short circuit to each other, to vehicle Ground (GND) and to B+.
Specified value: infinite ohms
- Erase DTC memory of Engine Control Module (ECM) , Diagnostic mode 4: Reset/erase diagnostic data.
- Generate readiness code.
If no DTCs are found in wires:
- Replace Mass Air Flow (MAF) Sensor (G70).
Final Procedures
After the repair work, the following work steps must be performed in the following sequence:
1. Check the DTC memory. Refer to --> [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Modes 01 - 09.
2. If necessary, erase the DTC memory. Refer to --> [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.
3. If the DTC memory was erased, generate readiness code. Refer to --> [ Readiness Code ] Readiness Code.
