Multi Function Transmission Range Switch

Multi Function Transmission Range Switch

Special tools, testers and auxiliary items required

• Headlight washer adjustment tool (T10173)

• Torque wrench (VAG 1331)

Removing

For reasons of clarity, the transmission is shown removed throughout this procedure.

- Place selector lever in the "P" position.

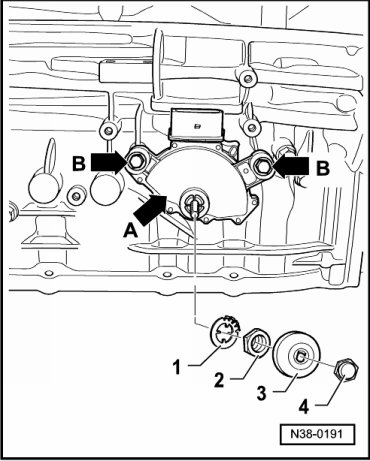

- Remove the cap nut - 4 -.





- Remove cover - 3 - from selector shaft.

- Carefully bend back the hooks of the lock washer - 1 - using a screwdriver.

If one hook breaks off, the washer must be replaced.

- Now remove the nut - 2 - and lock washer - 1 - from selector shaft.

- Disconnect connector from multi function Transmission Range (TR) switch (F125).

- Remove bolts - arrows B - and remove multi function transmission range switch - arrow A - from selector shaft.

Installing and adjusting

- Move selector shaft lever to the "N" position on transmission.

- Connect multi function Transmission Range (TR) switch (F125) to shift rod.

- Tighten bolts - arrows B - hand tight for multi function Transmission Range (TR) switch (F125).

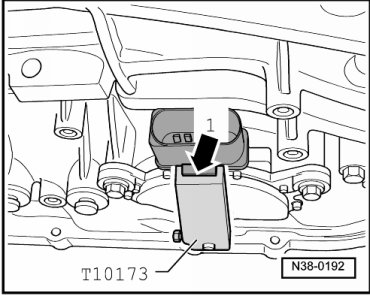

- Place setting gauge (T10173) onto selector shaft.





- Unhook selector lever cable.

- Turn the multi function Transmission Range (TR) switch - A - so far until the tab on the connector - arrow 1 - engages the groove of the setting gauge (T10173).





- Tighten bolts - arrows - for multi function Transmission Range (TR) switch (F125) to 6 Nm.





- Now remove setting gauge (T10173) from selector shaft.

- Hook selector lever cable in.

Further installation is performed in reverse order.

- Check the adjustment of the selector lever cable. Refer to --> [ Selector Lever Cable Checking and Adjusting ] Procedures.
