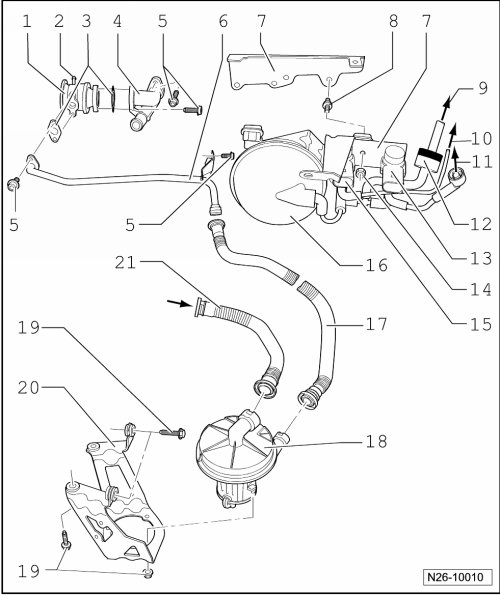

Secondary Air Injection System, Assembly Overview

Secondary Air Injection System, Assembly Overview

• Secondary Air Injection (AIR) pump relay (J299)





1 Combination valve

• Checking --> [ Secondary Air Injection System Combination Valve, Checking ] Secondary Air Injection System Combination Valve, Checking.

2 Vacuum connection

3 Gasket

• Replace

4 Connection

5 10 Nm

6 Pressure pipe

7 Bracket

8 Stud, 8 Nm

• Screwed into intake manifold

9 To Intake manifold

10 To combination valve

11 To vacuum actuator

• for variable intake manifold

12 Non-return valve

• Note installation position

• White connector faces vacuum reservoir

13 Intake Manifold Tuning (IMT) valve (N156)

14 8 Nm

15 Secondary Air Injection (AIR) solenoid valve (N112)

16 To vacuum reservoir

17 Pressure hose

• Ensure seated tightly

• Press together at front to release

18 Secondary Air Injection (AIR) pump motor (V101)

19 10 Nm

20 Bracket

• For Secondary Air Injection (AIR) pump motor (V101)

21 Intake tube

• From upper air filter housing

• Ensure seated tightly

• Press together at front to release

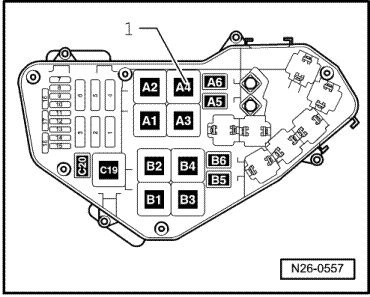

Secondary Air Injection (AIR) Pump Relay (J299)





• Secondary air injection pump relay (J299) - 1 - is inserted in socket A4.

• If tools are necessary to pull relays or control modules out of the relay plate, first disconnect battery ground (GND) strap.
