Remote Control Module: Service and Repair

Control Module in Steering Wheel

Before starting repair work, perform the following:

- Switch off ignition, switch off all electrical consumers and remove ignition key.

Removing

- Remove driver's side airbag unit.

• Position the uninstalled airbag unit so that it is not directly in your field of view.

• Before starting repair work on removed airbag unit, electrostatically discharge yourself. This is accomplished by, for example, touching grounded metal like water pipes, heating pipes or metal carriers.

- Remove driver's airbag attachment panel.

- Lay aside removed airbag unit on soft surface with top side facing down (this applies only to following repair work).

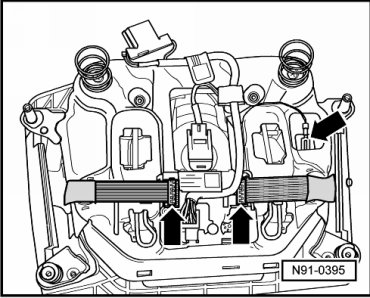

- Disengage harness connectors - arrows - and disconnect them.

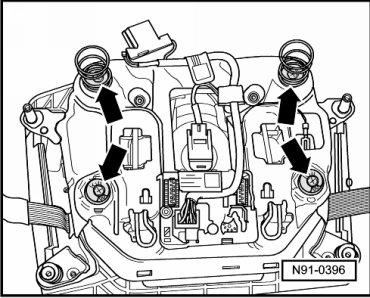

- Remove 4 mounting bolts from signal horn operation - arrows -.

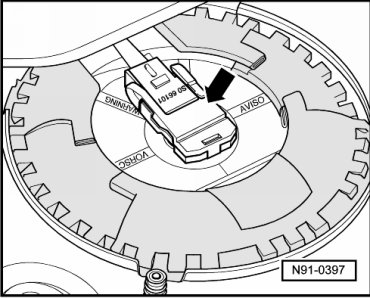

- Before removing bracket for signal horn operation, disengage harness connector of airbag unit and disconnect - arrow -.

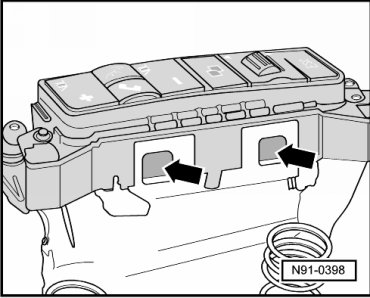

- With signal horn operation removed, press retainer clips inward - arrow - and remove control head upward.





Installing

Install in reverse order of removal.

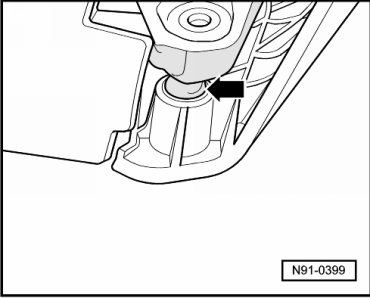

When installing make sure to insert ball heads of control head - arrow - into mountings on airbag.
