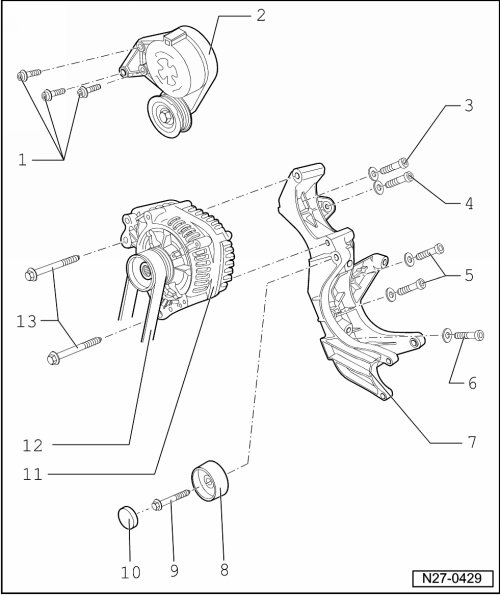

Generator Assembly Overview

Generator Assembly Overview





1 - Socket head bolt with washer

• M8 x 30 mm

• 20 Nm

2 - Tension roller

3 - Socket head bolt with washer

• M8 x 1.57 in

• 20 Nm

4 - Fitted bolt with washer

• M8 x 0.98 in

• 20 Nm

5 - Socket head bolts with washer

• M8 x 1.57 in

• 20 Nm

6 - Fitted bolt with washer

• M8 x 0.98 in

• 20 Nm

7 - Bracket

8 - Idler pulley

9 - Fitted bolt with hex head

• Component of relay pulley item 8, cannot be replaced separately

• M10 x 1.97 in

• 40 Nm

10 - Cap

11 - Generator

• B+ wire fastener to generator, 15 Nm --> [ B+ Cable Mount to Generator ] Description and Operation

• Neither voltage regulator nor carbon brushes can be replaced individually; if a repair is required, entire generator must be replaced.

• Generator, removing and installing --> [ Generator ] Generator

• Generator ribbed belt pulley, removing and installing --> [ Generator Ribbed Belt Pulley ]

12 - Ribbed belt

• Ribbed belt, checking --> [ Ribbed Belt, Checking ] Testing and Inspection

• Ribbed belt routing --> [ Ribbed Belt Routing ]

13 - Collar bolts

• M8 x 3.54 in

• 20 Nm
