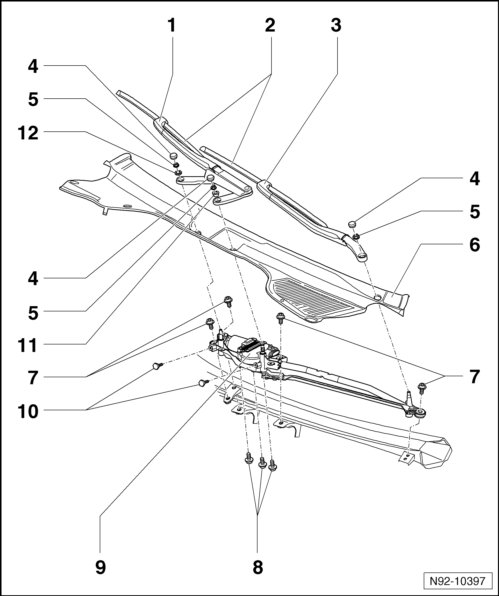

Windshield Wiper System Assembly Overview

Windshield Wiper System Assembly Overview





1 Wiper arm, passenger side

• Removing and installing --> [ Passenger Side Wiper Arm, Removing ] Windshield Wiper System

2 Aero windshield wipers

• Removing and installing --> [ Aero Windshield Wiper Blades ] Aero Windshield Wiper Blades

• Adjusting park position --> [ Windshield Wiper Blades, Adjusting Park Position ] Windshield Wiper Blades, Adjusting Park Position

3 Driver's side wiper arm

• Removing and installing --> [ Driver Side Wiper Arm, Removing ] Windshield Wiper System

4 Cap

5 Wiper arm nut on wiper arm shaft

• Driver wiper arm: 32 Nm

• Passenger wiper arm: 32 Nm

• Passenger wiper arm axle: 15 Nm

6 Plenum chamber cover

7 Bolts for wiper frame with linkage to body

• 10 Nm

8 Wiper motor to wiper frame bolts

• 7 Nm

9 Windshield wiper motor (V) with linkage

• Unit with wiper motor control module (J400)

• Windshield Wiper Motor with Wiper Frame, Removing and Installing --> [ Wiper Frame with Linkage and Windshield Wiper Motor, Removing ] Windshield Wiper System

• Windshield Wiper Motor, Removing from Wiper Frame --> [ Windshield Wiper Motor, Removing from Wiper Frame ] Windshield Wiper System

• Wiper Frame with Linkage, through 22.07, Removing and Installing --> [ Wiper Frame with Linkage, through 22.07 ] Windshield Wiper System

• Crank nut to wiper motor shaft: 20 Nm

• Windshield Wiper Control Module (J400), Coding --> [ Wiper Motor Control Module, Coding ] Testing and Inspection

10 Wiper motor bolts to bulkhead plenum chamber

• 7 Nm

11 Cone

• Installed in wiper arm

12 Washer
