Fender Overview

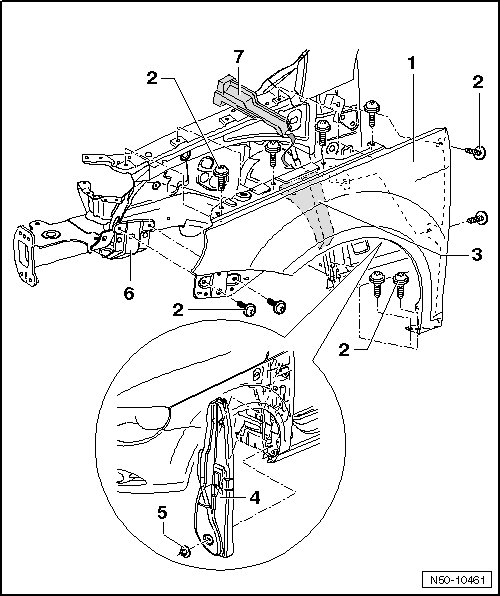

Fender Assembly Overview

• The illustration shows a left fender. The right fender is identical.






1 Fender

• Removing and Installing, refer to => [ Fender ] Fender

2 Bolt

• A-pillar, quantity: 2

• Sill panel, quantity: 2

• Fender brace, quantity: 2

• Fender connecting piece, quantity: 4

• Tightening specification: 6 Nm

3 Foam piece

• Inserted between fender and upper longitudinal member.

4 Fender end plate

5 Hex nut

• Tightening specification: 2.5 Nm

6 Fender brace

• Removing and Installing, refer to => [ Fender Brace ] Fender Brace

7 Filler piece

• Self-adhesive
