Relay Carrier On Lower Vehicle Electrical System Control Module (optional)

Relay

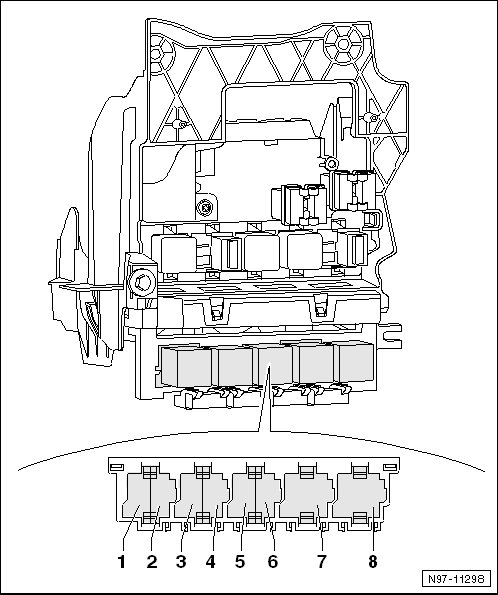

Relay Carrier on lower Vehicle Electrical System Control Module (optional)







1 Coolant circulation pump relay -J151- (449)
• Fuse location 1
2 Not used
• Fuse location 1
3 Fuel pump relay -J17- (449)
• Fuse location 2
4 Electric fuel pump 2 relay -J49-
• Fuse location 2
5 Relay for low heat output -J359-
• Fuse location 3
6 Auxiliary heater operation relay -J485-
• Fuse location 3
7 Relay for high heat output -J360- (370)
• Fuse location 4
8 Fresh air blower relay -J13-
• Fuse location 5

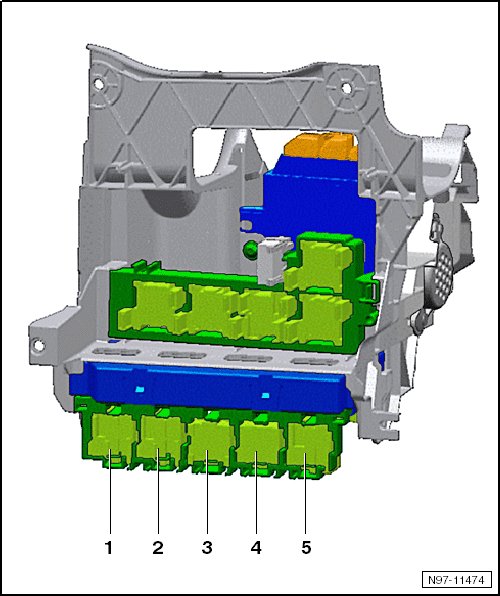

1 - Coolant circulation pump relay -J151-
• Only models with 2.0L gasoline engine

1 - Starter relay 2 -J907- *** 2
• *** 2 Only models with stop/start system

2 - Fuel pump relay -J17-
• Only models with diesel engine

3 - Relay for low heat output -J359- (373)
• Only for vehicles without parking heater

3 - Auxiliary heater operation relay -J485-

4 - Fresh air blower relay -J13-
• Only models with Climatic or heater

5 - Relay for high heat output -J360- (644)
• Only for vehicles without parking heater

5 - Auxiliary heater operation relay -J485-
