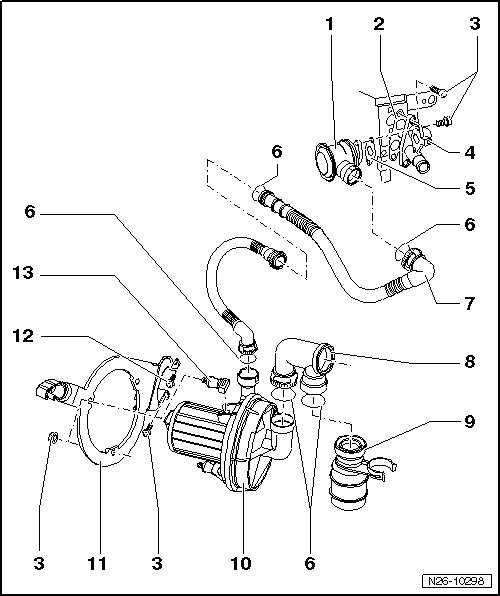

Secondary Air Injection System Overview

Secondary Air Injection System Overview






1 Combination Valve

• Checking, refer to => [ Secondary Air Injection Combination Valve, Checking ] Secondary Air Injection Combination Valve, Checking.

• Removing and installing, refer to => [ Combination Valve ] Combination Valve.

• Self opening

2 Gasket

• Replace

3 Bolt

• 10 Nm

4 Connecting Piece

• For combination valve.

5 Gasket

• Replace

6 O-ring

• Replace if damaged

7 Pressure Hose

• Ensure the hose is securely seated.

8 Connecting Piece

9 Air Filter Housing

• Clean if there are contaminants

10 Secondary Air Injection (AIR) Pump Motor (V101)

• Removing and installing, refer to => [ Secondary Air Injection Pump Motor ] Secondary Air Injection Pump Motor.

• Is checked via output Diagnostic Test Mode (DTM).

11 Bracket

• For AIR pump motor

12 Bolt

• 20 Nm

13 Rubber Bushing
