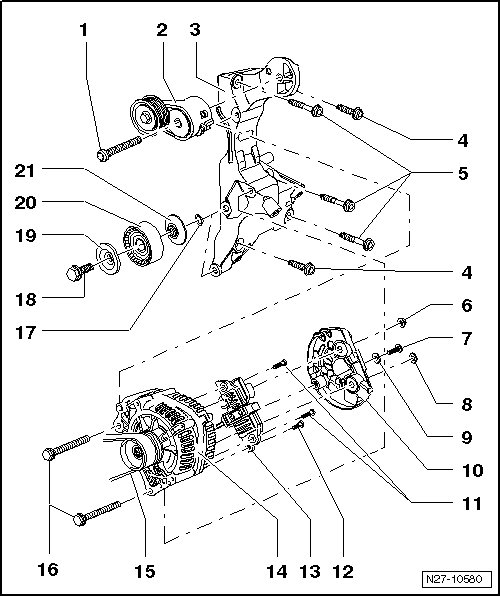

Generator Overview

Generator Overview






1 Internal Multi-Point Bolt

• For tensioner => [ (Item 2) Tensioner For Ribbed Belt ].

• 50 Nm

• M10x85

2 Tensioner For Ribbed Belt

- Removing and installing.

3 Accessories Bracket

• For generator and A/C compressor.

• Tightening sequence, refer to => [ Generator Tightening Specifications ] Specifications

Removing and installing the A/C compressor accessories bracket.

4 Hex Socket Head Fitting Bolts

• 23 Nm

• M8x28

5 Hex Socket Head Bolts

• For accessories bracket => [ (Item 3) Accessories Bracket ].

• 23 Nm

• M8x50

6 Nut

• M8

Tightening specification, refer to => [ Voltage Regulator, Bosch ] Voltage Regulator, Bosch or => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo.

7 Phillips Head Screw

• 4.5 Nm

• M5 x 21

8 Nut, Flat

• M8

Tightening specification, refer to => [ Voltage Regulator, Bosch ] Voltage Regulator, Bosch or => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo.

9 Washer

• M8

10 Cap

11 Phillips Head Screws

• 2 Nm

• M4 x 19

12 Phillips Head Screw

• 2 Nm

• M4 x 13

13 Voltage Regulator

• Removing and installing, refer to => [ Voltage Regulator, Bosch ] Voltage Regulator, Bosch or => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo.

14 Generator

• Removing and installing, refer to => [ Generator ] Generator.

15 Ribbed Belt

• Checking, refer to => [ Ribbed Belt, Checking ] Testing and Inspection.

• Ribbed belt routing.

• Removing and installing, refer to => [ Generator ] Generator.

16 Bolts

• 23 Nm

• M8 x 90

17 O-Ring

• For idler pulley.

18 Bolt

• For idler roller => [ (Item 20) Idler Pulley ].

• 40 Nm

• M10x36

19 Dust Cap

• For idler roller => [ (Item 20) Idler Pulley ].

20 Idler Pulley

• With grooved ball bearing.

21 Dust Cap

• For idler roller => [ (Item 20) Idler Pulley ].
