Firewall: Service and Repair

Bulkhead

=> [ Bulkhead Assembly Overview ]

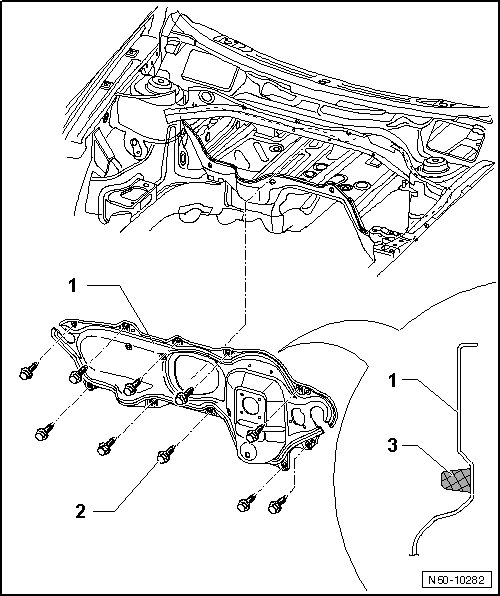

Bulkhead Assembly Overview

• The bulkhead - 1 - is bolted and also bonded in with PUR adhesive sealing material - 3 -.





1 Bulkhead

• Removing:

- After unscrewing of bolts - 2 -, cut through adhesive bead using workshop tools.

2 Bolt

• Quantity: 10

• Tightening specification: 25 Nm

3 PUR Adhesive Sealant

• DH 009 100 03

• Bead diameter: width = 8 mm, height = 10 mm

• Minimum curing time, refer to => [ Minimum Curing Time ] Flush Bonded Windows Overview
