Multi Media System with DVD Player, Overview

Multi Media System with DVD Player, Overview

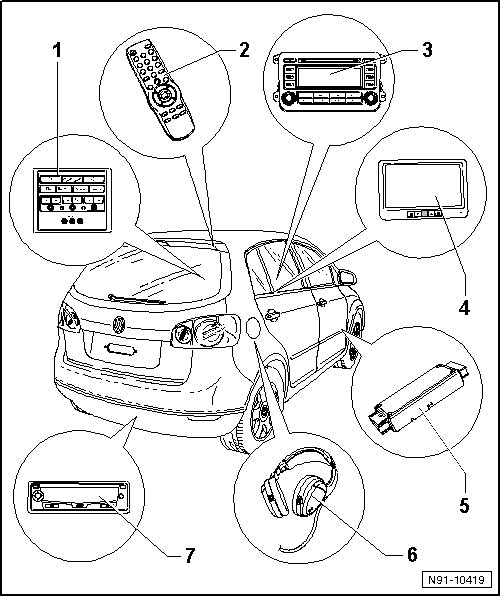

1 Multimedia Control Head (E380)

• Installed in center console, rear

• With auxiliary sockets installed for AUX input and headphones connections

• Removing and Installing, refer to => [ Multimedia Control Module ] Communication

2 Multimedia Remote Control

• Requires two 1.5 volt AA batteries

• Changing battery, refer to => [ Remote Control Battery ] Communication

3 Radio/Navigation Display Control Module (J503 ) or Radio (R)

4 Multimedia Display Unit 1 (Y22)

• Installed in roof console

• Removing and Installing, refer to => [ Multimedia Display Unit ] Communication

5 Multimedia Control Module (J650)

• Installed below front right seat

• Removing and Installing, refer to => [ Multimedia Control Module ] Communication

6 Right Multimedia Headphones (R124) and Left Multimedia Headphones (R123)

7 DVD Player (R129)

• Installed in center console storage bin

• Removing and Installing, refer to => [ DVD Player ] Communication
