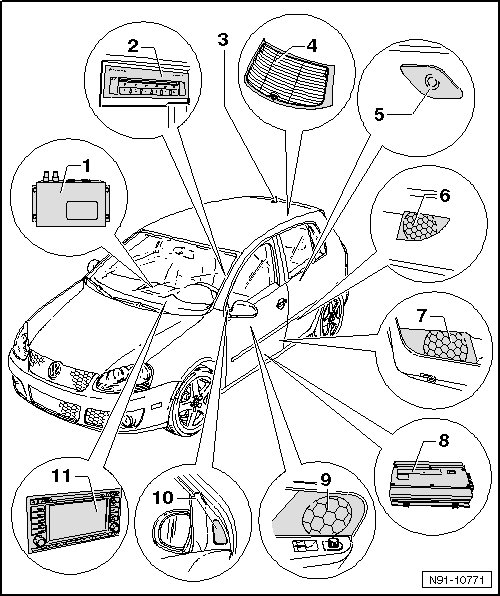

RNS MFD 2 DVD Radio Navigation System, Overview

RNS MFD 2 DVD Radio Navigation System, Overview





1 Digital Satellite Radio Tuner (R190)

• Optional as additional equipment

• Installed below front right seat

• Additional notes, refer to => [ Digital Satellite Radio ] Digital Satellite Radio

2 CD Changer (R41)

• 6 disc CD changer

• Installed in center console

• Additional information, refer to => [ CD Changer ] CD Changer

3 Satellite Tuner Antenna (R172)

• Optional as additional equipment

• On rear of roof

• Also optional for navigation and telephone

• On vehicles without satellite tuner, telephone/navigation system/auxiliary heater antenna (R66) antenna is used

• For additional notes, refer to => [ Antenna ] Antenna

4 Window Antenna

• Installed in rear window, for radio reception

• For additional notes, refer to => [ Antenna ] Antenna

5 Right Rear Treble Speaker (R16) and Left Rear Treble Speaker (R14)

• Installed in rear left and right side trim

• Additional information, refer to => [ Speaker Systems ] Description and Operation

6 Right Rear Bass Speaker (R17) and Left Rear Bass Speaker (R15)

• Installed in left and right side trim

• Additional information, refer to => [ Speaker Systems ] Description and Operation

7 Right Front Bass Speaker (R23) and Left Front Bass Speaker (R21)

• Installed in door trim of left and right front doors

• Additional information, refer to => [ Speaker Systems ] Description and Operation

8 Digital Sound System Control Module (R12)

• Optional as additional equipment

• Installed under left front seat

• For additional notes, refer to => [ Sound System Amplifier ] Description and Operation

9 Right Front Midrange Speaker (R104) and Left Front Midrange Speaker (R103)

• Installed in door trim of left and right front doors

• Additional information, refer to => [ Speaker Systems ] Description and Operation

10 Right Front Treble Speaker (R22) and Left Front Treble Speaker (R20)

• Installed in triangle window of left and right front doors

• Additional information, refer to => [ Speaker Systems ] Description and Operation

11 Radio/Navigation Display Control Module (J503 )

• Removing and Installing, refer to => [ Radio Navigation System ] Communication

• Overview of harness connectors, refer to => [ Radio Navigation System Connectors. Overview ] Radio Navigation System Connectors. Overview
