Rear Bumper Substructure Overview

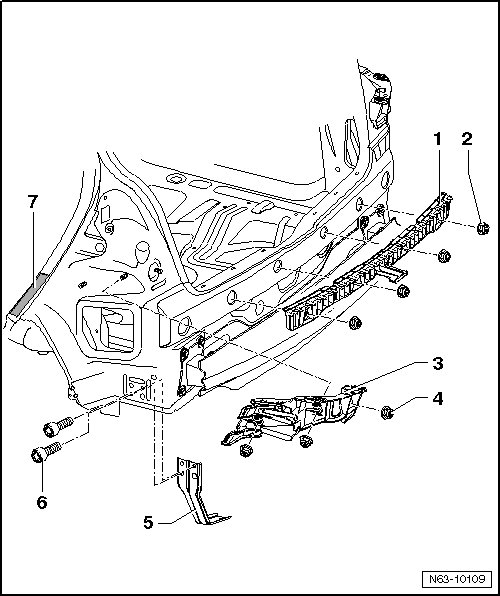

Rear Bumper Substructure





1 Securing strip

2 Hex nut

• Qty. 4

• 2 Nm

3 Guide trim

• left and right

4 Hex nut

• Qty. 3 per side

• 2 Nm

5 Angle bracket

• Not installed on all models.

6 Bolt

• Qty. 2

• 5 Nm

7 Foil

• left and right

• Self-adhesive
