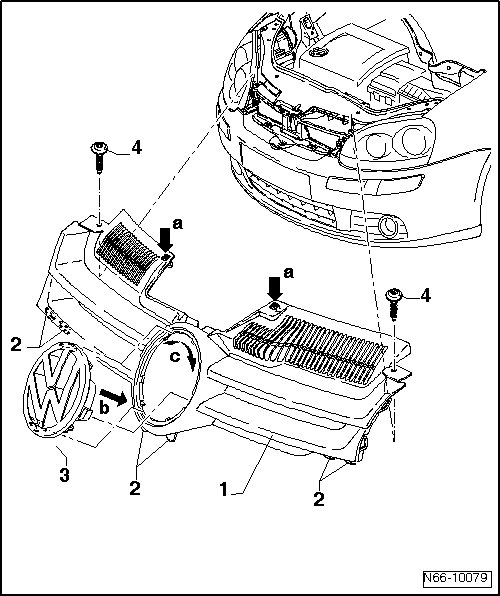

Radiator Grille Assembly Overview

Radiator Grille Assembly Overview





1 Radiator Grille

• Material - ASA

2 Catches

• Qty. 6

3 Emblem

• Clipped into radiator grille.

• Can be removed only when radiator grille is removed

• Removing: Release catches on rear side of emblem with radiator grille removed.

• Installing: Guide manufacturer's emblem with catch into recesses in radiator grille - arrow b -, then twist slightly in direction - arrow c - until manufacturer's emblem engages in radiator grille.

4 Bolt

• Qty. 2

• 2 Nm
