Front Seat Support and Operating Lever

Front Seats

Front Seat Support And Operating Lever

• Removing And Installing On The Left Side Of The Vehicle Is Described Here. Removing And Installing On The Right Side Is Identical.

Removal

- Remove Front Seat. Refer to => [ Front Seat ] Front Seat

- Remove Front Left Seat Trim. Refer to => [ Left Seat Trim ] Left Seat Trim

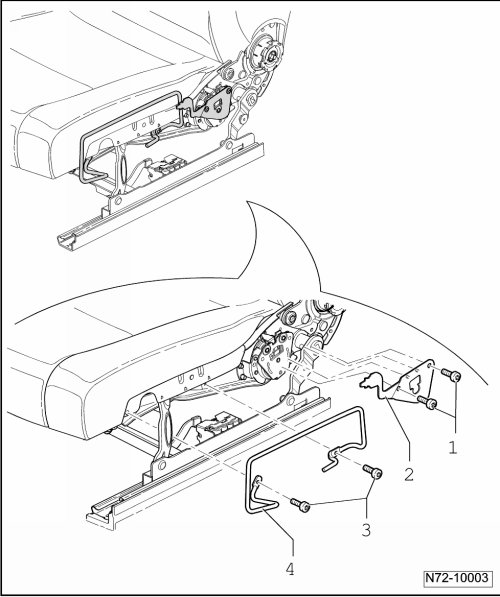

- Remove The Two Bolts - 1 - (3.5 Nm) And Remove Operating Lever - 2 -.

- Remove The Two Bolts - 3 - (3.5 Nm) And Remove Bracket - 4 -.





Installation

- To Install, Perform The Steps Used For Removal In Reverse Order.
