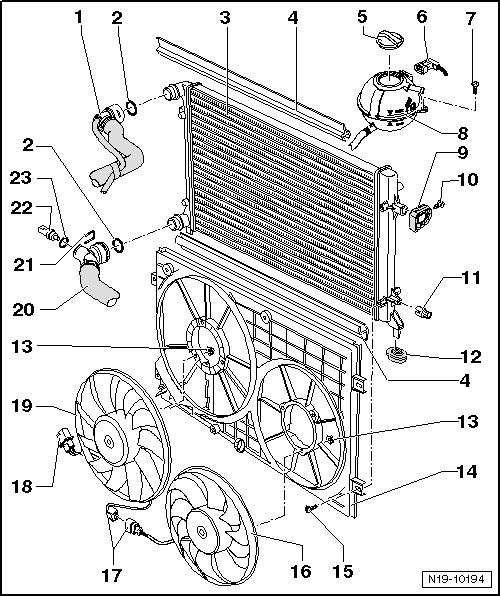

Cooling System Components Assembly Overview, Body Side

Cooling System Components Assembly Overview, Body Side





1 Upper coolant hose

• For coolant distribution housing on cylinder head

2 O-ring

• Replace if damaged

3 Radiator

• Removing and installing => [ Radiator ] Service and Repair

• After replacing replace entire amount of coolant

4 Gasket

5 Cap

• Check using cooling system tester (V.A.G 1274) and adapter (V.A.G 1274/9) => [ Pressure Relief Valve in Cap, Checking ] Cooling System, Checking For Leaks.

• Pressure release valve must open at a pressure of 1.4 to 1.6 bar.

6 Connector

7 3 Nm

8 Expansion tank

• Perform leak test of cooling system using cooling system tester (V.A.G 1274) and adapter (V.A.G 1274/8) => [ Cooling System, Checking for Leaks ] Cooling System, Checking For Leaks.

9 Bracket

• For radiator

10 5 Nm

11 Spacer piece

• For coolant line bracket

12 Support

• Insert in lock carrier

13 5 Nm

14 Air shroud

15 5 Nm

16 Coolant Fan 2 (V177)

• Removing and installing => [ Coolant Fans ] Coolant Fans

17 Connector

18 Connector

19 Coolant Fan (V7)

• Removing and installing => [ Coolant Fans ] Coolant Fans

• With Coolant Fan Control (FC) Control Module ( J293)

20 Lower coolant hose

• From connection for coolant regulator

21 Retaining clip

22 Engine Coolant Temperature (ECT) Sensor (on Radiator) (G83)

23 O-ring

• Replace
