Heating, Ventilation and Air Conditioning

Special Tools

Information for special tools and equipment when repairing vehicles with air conditioning can be found in ELSA under; technical data.

Special tools, testers and auxiliary items required

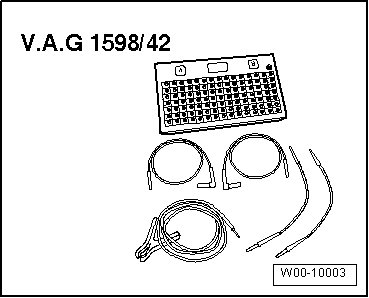

• test box (V.A.G 1598/42)

• adapter cable (V.A.G 1598/47)





• template (1598/47-2)

• Vehicle Diagnosis, Testing and Information System ( VAS 5051) or succeeding model

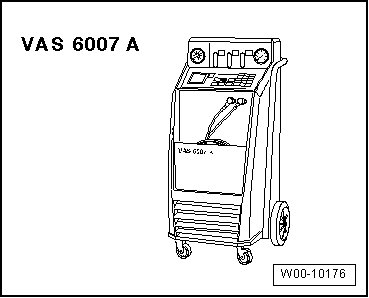

• for example A/C Service Station (VAS 6007A) (or succeeding model)





• Torque wrench (V.A.G 1331/) (5 to 50 Nm)





• Drip tray (V.A.G 1306)

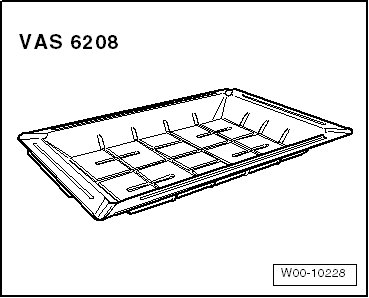

• drip tray for shop crane (VAS 6208)





• Hose clamps up to dia. 40 mm (3093)

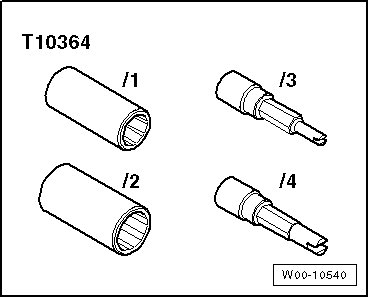

• Adapter set with service connection (T10364)





• Torque wrench (V.A.G 1783) (2......10 Nm) for adapter set with service connections (T10364)

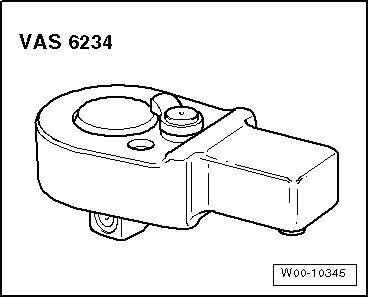

• "Ratchet Insert 1/4""" (VAS 6234) for Adapter set with service connections (T10364)





• Compressed air gun, commercially available
