Headlamps Mounting Tabs, Repairing

Headlamps Mounting Tabs, Repairing

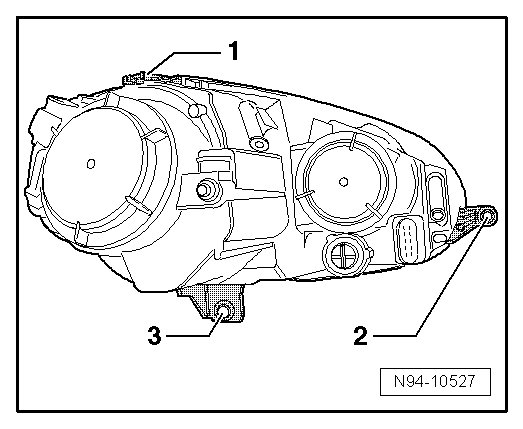

If upper - 1 -, outer - 2 - or lower headlamp securing tab - 3 - is damaged or broken off, these can be replaced by installing repair kit. It is not necessary to replace the entire headlamp.





• Check whether there is no further damage on the headlamp that makes installation of the repair set superfluous.

• There are two different repair sets, for the left and the right headlamp.

• Each repair set respectively contains the upper, the outer and the lower headlamp mounting tab, four mounting bolts, a metal nut pre-mounted on the upper mounting tab and an adjustment bushing pre-mounted on the outer and the lower headlamp mounting tab respectively.

- Repairing the upper mounting tab, refer to => [ Upper Mounting Tab, Repairing ] Headlamp Mounting Tabs.

- Repairing the outer mounting tab, refer to => [ Outer Mounting Tab, Repairing ] Headlamp Mounting Tabs.

- Lower mounting tab, repairing, refer to => [ Lower Mounting Tab, Repairing ] Headlamp Mounting Tabs.
