Horn: Service and Repair

Horns

• High Tone Horn and Low Tone Horn are activated in parallel by Vehicle Electrical System Control Module.

• Removal and installation for High Tone Horn and Low Tone Horn is performed in the same way and is only described for one signal horn.

• Signal horns are installed at left and right next to longitudinal members..

Removing

- Turn off the ignition and all electrical consumers.

- Remove front part of wheel housing line

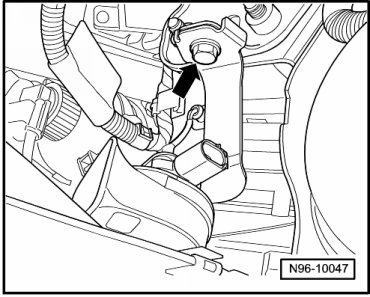

- Disconnect electrical connection - arrow -.





- Remove mounting bolt - arrow - and remove signal horn.





Installing

Install in reverse order of removal.
