Front Interior and Reading Lamp

Roof Trim Lamps and Switches

Front Interior and Reading Lamp

Special tools, testers and auxiliary items required

• Trim removal wedge (VAS 3409)

• When removing and installing components in a visible area (switches, covers, trim, etc.), mask off the areas at which a prying tool ( trim removal wedge (VAS 3409), screwdriver) will be positioned, using commercially available adhesive tape.

Removing

- Turn off the ignition and all electrical consumers.

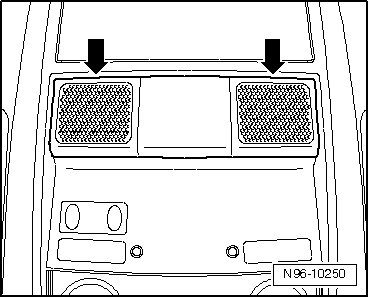

- Carefully pry panel out of interior light - arrows - using trim removal wedge (VAS 3409) or a screwdriver.

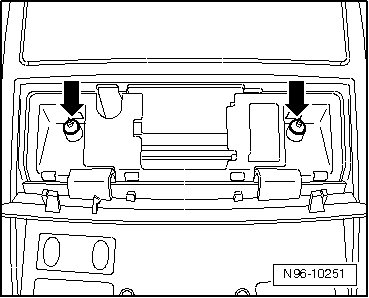

- Remove screws - arrows -.





- Remove interior light from console in molded headliner.

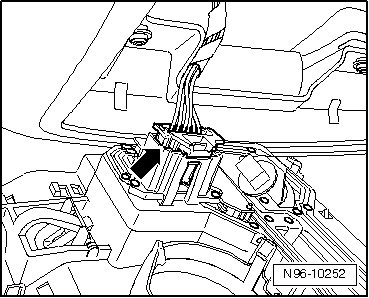

- Disconnect connectors - arrows -.





Installing

Install in reverse order of removal.

Front Interior and Reading Lamp

Special tools, testers and auxiliary items required

• Trim removal wedge (VAS 3409)

• When removing and installing components in a visible area (switches, covers, trim, etc.), mask off the areas at which a prying tool ( trim removal wedge (VAS 3409), screwdriver) will be positioned, using commercially available adhesive tape.

Removing

- Turn off the ignition and all electrical consumers.

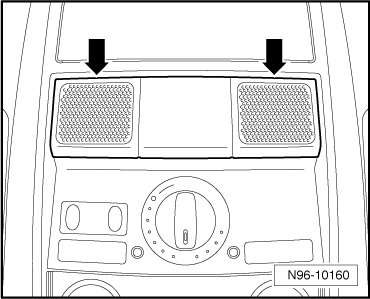

- Carefully pry panel out of interior light - arrows - using trim removal wedge (VAS 3409) or a screwdriver.

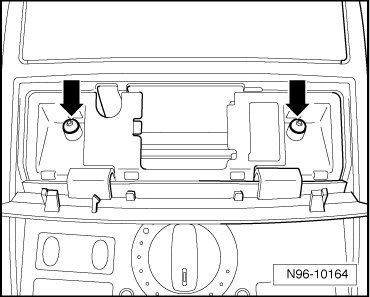

- Remove screws - arrows -.





- Remove interior light from console in molded headliner.

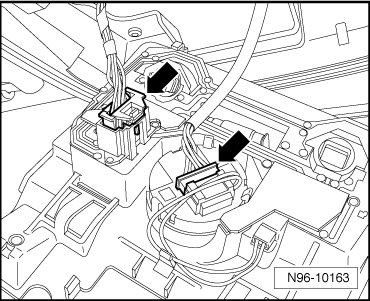

- Disconnect connectors - arrows -.





Installing

Install in reverse order of removal.
