Wheel Hub: Service and Repair

Front Wheel Drive

Wheel Bearing and Wheel Hub

Special tools, testers and auxiliary items required

• Grease Cap Puller (VW 637/2)

• Seal Installer (3241)

• Torque Wrench (V.A.G 1332)

• Torque Wrench (V.A.G 1410)

• Bit XZN 18 (T10162)

Removing

- Raise vehicle.

- Remove wheel.

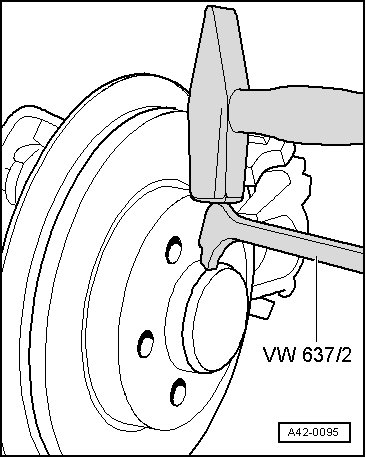

Loosen dust cap from its seat by tapping lightly on (VW 637/2 ) claw.

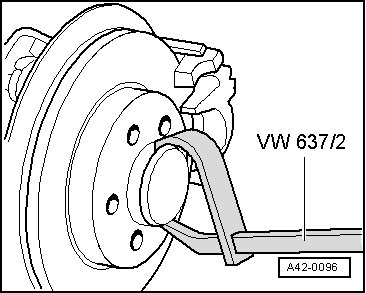

- Press off dust cap.





- Remove brake carrier with brake caliper and hang on body with tie wire.

• Suspend brake caliper from body.

- Remove Phillips bolt for brake disc and take out brake disc.

- Remove multi-point socket head bolt using (T10162).

- Pull wheel hubs/wheel bearing unit off stub axle.

Installing

- Carefully slide wheel hub/wheel bearing unit onto stub axle.

Make sure that wheel hubs/wheel bearing unit do not cant!

- Tighten using a new multi-point socket head bolt.

• First tighten the bolt to the given tightening specification using the torque wrench.

• Use solid wrench for additional torque angle.

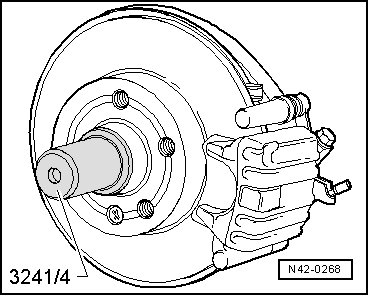

- Drive dust cap on with installation sleeve (3241/4 ).





• Always replace dust caps.

• Damaged dust caps allow moisture to enter. Therefore, always use the tool shown.

Rest of installation is the reverse of removal.

- Install wheel and tighten. Refer to => [ Wheel Bolt Tightening Specification ] Specifications.

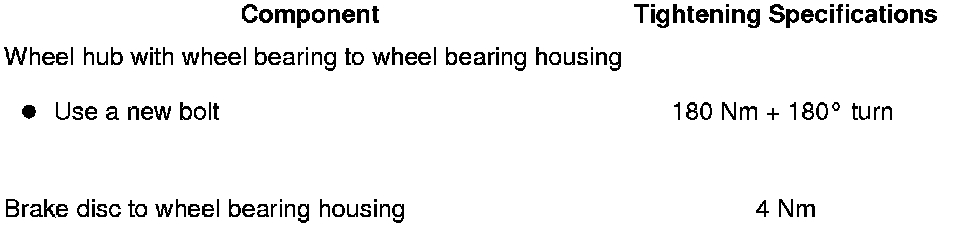

Tightening Specifications
